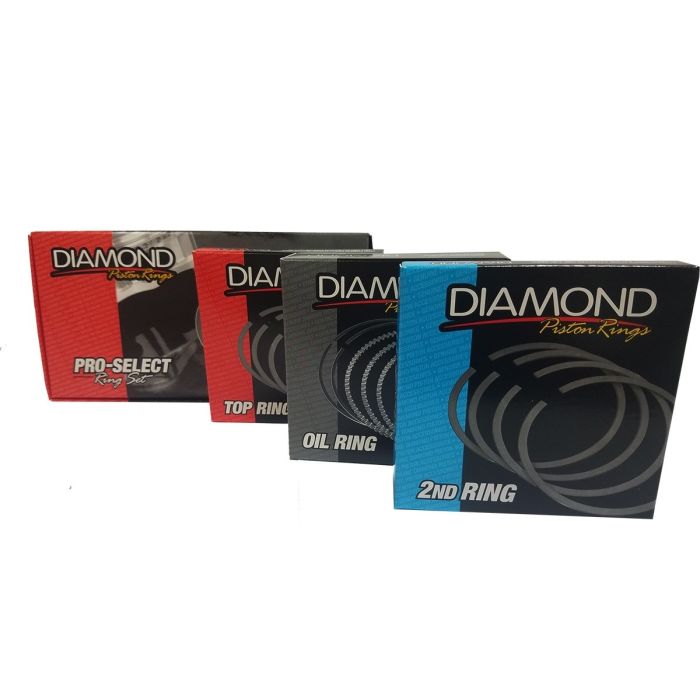

Image is a representation of this item. Actual item may vary.
Part Number:
DRP-09593307

09593307 Diamond Pro Select Piston Rings 3.307 Bore 1.5 1.5 3.0mm

Fits 3.505 Bore Size, 1.5mm AP Steel Top Ring, 1.5mm Reverse Back Twist 2nd Ring, 3.0mm Standard Tension Oil Ring, File Fit, 4 Cylinder Set

$169.99
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
Diamond Pro-Select piston ring sets are designed for performance applications. Limited boost under 15psi, Limited Nitrous use under 250 Horsepower
  • Bore Size: 3.505
  • Top Ring: 1.5mm
  • Top Ring Radial: 0.150
  • Top Ring AP Steel
  • 2nd Ring: 1.5mm
  • 2nd Ring Radial: 0.140
  • 2nd Ring Reverse Back Twist
  • Oil Ring: 3.0mm
  • Oil Ring Radial: 0.125
  • Oil Tension: Standard Tension
  • Ring Set: 4 Cylinder
  • More Information
    CNC Part Number DRP-09593307
    Price $169.99
    Manufacturer's Part Number 09593307
    Brands Diamond
    Part Types Piston Ring
    Departments Parts
    Bore Size 3.307
    Top Ring 1.5mm
    Second Ring 1.5mm
    Oil Ring 3.0mm
    Ring Fitment File Fit
    Ring Series AP Steel Top
    Custom Notices ⚠ PROP 65 WARNING
