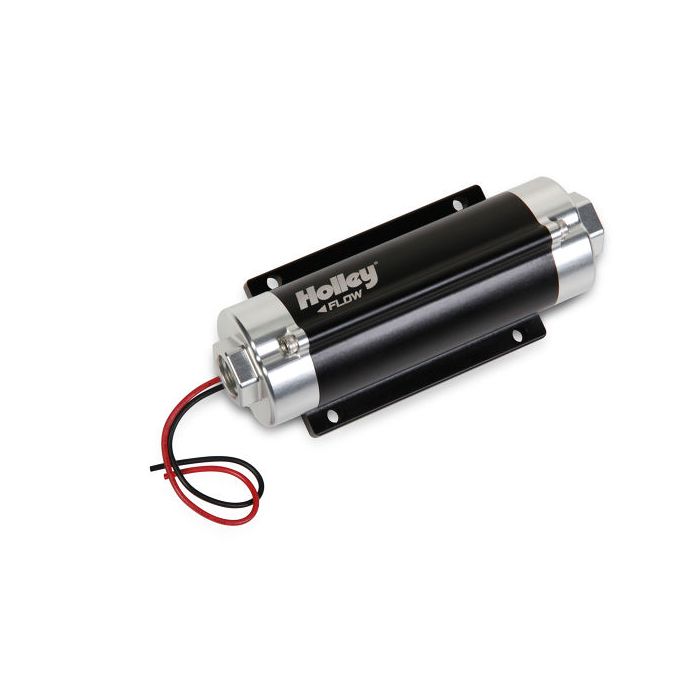

12-890 Holley100 GPH HP IN-LINE FUEL PUMP

Holley’s HP™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost effective, attractive package. HP™ fuel pumps are Race gas, E-85, and diesel compatible and can be used in racing applications with 18.5 volt charging systems up to 80 psi.

Billet aluminum construction for durability & good looks

-8 an O-ring inlet/outlet for high flow and superior sealing

Excellent for use with carbureted or EFI applications

Fully submersible in-tank for custom applications, space savings, and less plumbing

Compatible with 12v to 18.5v systems for street or race use

Compact (7.5” long x 3” wide x 2.75” tall) for easy installation on frame rails or other tight areas

Proven durability beyond 3,000 hours in gasoline or diesel fuels

Weighs only 3.1 lbs.

Current draw at 43 psi and 13.5 VDC is 8.6 amps
Features:

Application Universal

Brand: Holley

Emission Code: 3

Forced Induction HP@43PSI: 700

Forced Induction HP@60PSI: 600

Forced Induction HP@8PSI: 800

Free Flow: GPH 105

Fuel System: Carbureted/EFI

Fuel Type Diesel/E85/Gasoline

GPH@43PSI: 76

GPH@60PSI: 70

GPH@8PSI: 100

Inlet Size: 8 AN O-Ring - 3/4-16 SAE

LPH@43PSI: 287

LPH@60PSI: 265

LPH@8PSI: 363

Material: Aluminum

Naturally Aspirated HP@43PSI: 900

Naturally Aspirated HP@60PSI: 800

Naturally Aspirated HP@8PSI: 1050

Outlet Size: 8 AN O-Ring - 3/4-16 SAE

Product Type: Fuel Pump

Pump Body Color: Black Anodized

*All information is subject to change at the manufacturers discretion
