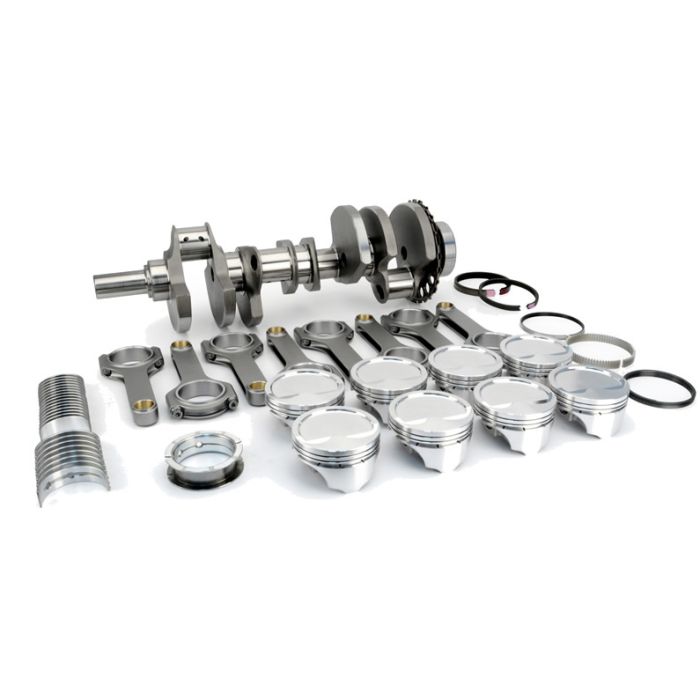

397409 Molnar 392 5.7 Hemi Stroker Kit, 9.4:1 Mahle Forged Pistons

392/396 Cubic Inch Stroker, Chrysler 5.7L Hemi Stroker Rotating Assembly Kit, Molnar 4340 Forged Steel Crankshaft 4.050 Stroke, Molnar 6.125 H-Beam Rods, Mahle Forged Flat Pistons -2.2cc , Rings and H Series Bearings Included

$3,095.95

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Description

5.7 Hemi Molnar Forged rotating assemblies are designed to support engine builds up to 1200 horsepower
Molnar 4340 forged steel crankshaft 4.050 Stroker crankshaft
K1 Forged 4340 steel H-Beam rods with 7/16" ARP2000 rod bolts, 6.125 Length
Mahle Forged pistons, (C/H 1.195)
Mahle piston ring set, 1.0mm steel top rings, 1.0mm Napier second rings, 2.0mm oil rings, good for boost or nitrous
Standard duty wrist pins
H series performance rod bearings and main bearings and thrust washer
Rotating assembly comes unbalanced, balancing is required before installation.
Compression Ratio with 64cc heads:
Compression Ratio with 74cc heads:
Compression Ratio with 85cc heads: 9.4:1

*5.7L up to 2008 use 32 Tooth Tone Ring, 2008 and present use 58 Tooth Tone Ring
*Note Standard bore size for 5.7L (3.917)
5.7L 2009 UP 64cc Eagle Heads
5.7L up to 2008 used 85cc heads

Specifications

More Information
CNC Part Number	MOL-397409
Price	$3,095.95
Manufacturer's Part Number	397409
Brands	Mahle, Molnar
Part Types	Engine Rotating Assembly Kit
Departments	Parts
Vehicle Make	Chrysler 5.7L
Balanced Assembly	No
Balance Type	Internal
Crankshaft Material	4340 Forged Steel
Crankshaft Stroke	4.050
Piston Brand	Mahle
Piston Type	Flat Top
Rod Length	6.125
Piston Material	4032 Forged
Custom Notices	⚠ PROP 65 WARNING
