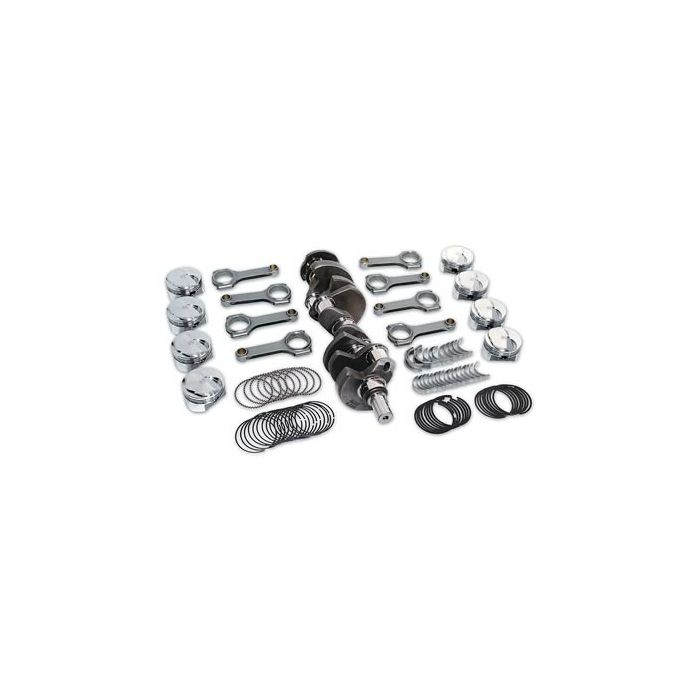

BB Chevy 604/638 Balanced Rotating Assembly 15.0:1 JE Dome Pistons, Molnar

Big Block Chevy 604 612 621 632 634 638 Stroker Kit, Molnar Crankshaft 4.750, Molnar H Beam Rods 6.700, H Series Rod and Main Bearings, JE +40cc Dome Pistons & Rings, 2 Piece Rear Main Seal, Balanced Assembly

$3,674.95

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Description

CNC-Motorsports takes great pride in offer Molnar rotating assembly kits. This rotating assembly kit featuring Molnar crankshaft, Molnar H beam rods with ARP2000 rod bolts, and JE pistons.This kit is designed for the racer looking for quality not breaking the bank. This kit will support up to 1400 horsepower applications.

Molnar 4340 Forged Crankshaft, 4.750 Stroke, 2 Piece rear main seal (Gen IV) *Center counter weighted*
Molnar H beam rods, 6.700 Length with ARP 2000 Rod Bolts
JE Dome Open Chamber performance pistons (1.120 C/H) .150 wall wrist pins
High performance 1/16 1/16 3/16 ring set
High performance H series main and rod bearings
Pistons are designed specifically to work with most any conventional open chamber Big Block Chevy cylinder head
Compression ratio w/110cc chamber: 16.4:1 (+40cc Dome)
Compression ratio w/118cc chamber: 15.0:1 (+40cc Dome)
Compression ratio w/124cc chamber: 14.1:1 (+40cc Dome)
Calculated deck Height 10.195" (Tall Deck)
*This rotating assembly kit has been Internally balanced in-house by CNC-Motorsports*

Specifications

More Information
CNC Part Number	CNC-6044-MRJE
Price	$3,674.95
Manufacturer's Part Number	6044-MRJE
Brands	JE, Molnar
Part Types	Engine Rotating Assembly Kit
Departments	Parts
Vehicle Make	BB Chevy
Balanced Assembly	Yes
Balance Type	Internal
Crankshaft Material	4340 Forged Steel
Crankshaft Stroke	4.750
Piston Brand	JE
Piston Type	Dome
Rod Length	6.700
Rear Main Seal	2 Piece
Piston Material	2618 Forged
Custom Notices	⚠ PROP 65 WARNING
