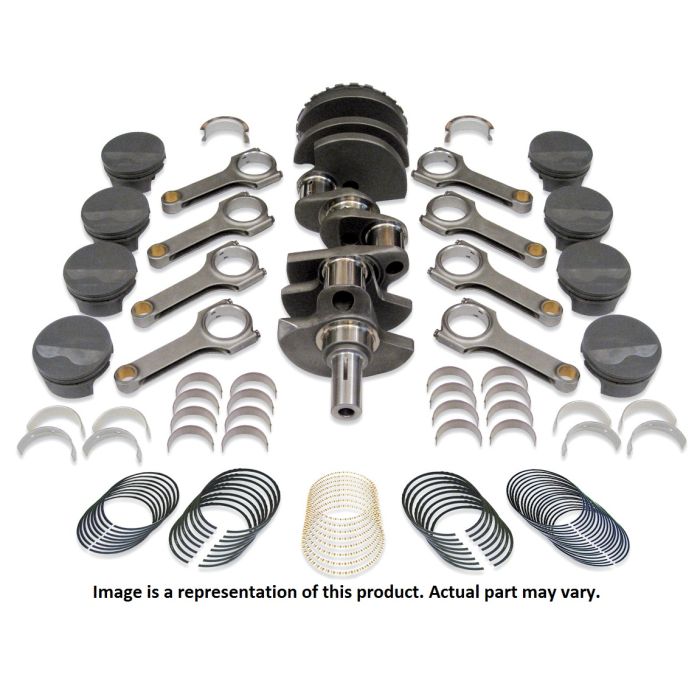

Image is a representation of this item. Actual item may vary.
Part Number:
CS-12910-M

Compstar Balanced 408 LS2 Rotating Assembly Kit, 10.7:1 Mahle Pistons,

GM GEN III GEN IV 6.0L LQ9 LQ4 408 Stroker kit, Callies Compstar 4340 Forged steel Crankshaft 4.000 Stroke, Callies Compstar 6.125 H-Beam Rods, Mahle Forged -12cc Dish Pistons, Performance Rings, HP Bearings Included, Balanced Assembly

Special Price $3,328.95 Regular Price $3,368.95
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Callies Compstar LS2 6.0L rotating assembly kits offer quality and reliability you can count on. Featuring fully forged crankshafts, connecting rods and forged pistons these kits are designed to make horsepower. Conservatively rated to support 1200 horsepower applications with option upgrades. Higher horsepower applications please contact us for other kit option upgrades. Kit fits GEN III 6.0L Vortec 6000, LQ4 LQ9, GEN IV 6.0L LS2 L76 L98 L77 LY6 L96 and others

  • GM 6.0L 408 Balanced Stroker rotating assembly kit features
  • Callies Compstar 4340 forged steel crankshaft, 4.000 Stroke, 8 Counterweight
  • Callies Compstar forged 4340 steel H-Beam rods with 7/16" ARP 2000 rod bolts
  • Mahle 4032 forged pistons, Coated Piston, Coated Skirts, LS Combo pockets, Fits LS1 LS3 15 degree heads
  • Mahle performance file to fit ring set, 1.0 Steel top ring, 1.0 Napier 2nd ring, 2.0mm oil rings
  • Performance H series rod and main bearings
  • This Rotating assembly kit has been Internal balanced in-house by CNC-Motorsports
  • Compression Ratio with 62cc head 11.0:1
  • Compression Ratio with 66cc head 10.7:1
  • Compression Ratio with 71cc head 10.0:1
  • More Information
    CNC Part Number CS-12910-M
    Price $3,368.95
    Manufacturer's Part Number CS-12910-M
    Brands Callies, Compstar, Mahle
    Part Types Engine Rotating Assembly Kit
    Departments Parts
    Vehicle Make Chevy LS
    Balanced Assembly Yes
    Balance Type Internal
    Crankshaft Material 4340 Forged Steel
    Crankshaft Stroke 4.000
    Piston Brand Mahle
    Piston Type Dish
    Rod Length 6.125
    Piston Material 4032 Forged
    Custom Notices ⚠ PROP 65 WARNING
