Image is a representation of this item. Actual item may vary.
Part Number:
ESP-CRS5090F3D

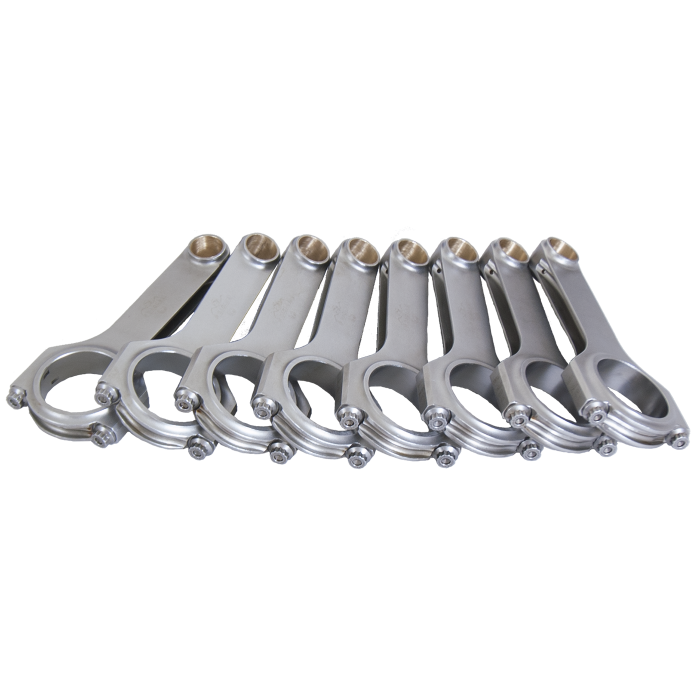

Eagle CRS5090F3D H Beam Connecting Rods 5.090 Ford 302

Eagle Rods, Ford 302, 5.090 Length, 4340 Forged Steel, ARP 8740 7/16 Rod Bolts, 2.123 Rod Journal .912 Bushed Full-floating Wrist Pins, Advertised Weight 590 grams, Set of 8 Connecting Rods

Special Price $601.53 Regular Price $616.95
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
Upgrade your engine's horsepower with Eagle ESP H-beam connecting rods. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, x-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models, and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated 7/16 ARP 8740 (750 Horsepower rating) and 230,000 psi rated, 7/16 ARP 2000 rod bolts (1200 horsepower rating) or 265,000 psi rated 7/16 ARP L-19 bolts (1500 Horsepower rating) as upgrades. Each set includes Instructions and rod bolt lubrication.
More Information
CNC Part Number ESP-CRS5090F3D
Price $616.95
Manufacturer's Part Number CRS5090F3D
Brands Eagle
Part Types Connecting Rod
Departments Parts
Vehicle Make SB Ford
Rod Length 5.090
Rod Journal 2.123
Wrist Pin Size 0.912
Rod Series Standard Weight
Rod Style H Beam
Custom Notices ⚠ PROP 65 WARNING
