Eagle SB Ford 347 Stroker Kit with -11cc JE Dish Pistons - Balanced Assembly

SBF 347 Stroker Kit, Eagle Crankshaft 3.400 Stroke, Eagle 5.400 H-Beam Rods, JE 2618 Forged -11cc Dish Pistons, Fits 1 or 2-PC Rear Seal, Rings and Bearings Included

Special Price $3,049.95 Regular Price $3,099.95

Kit Upgrades

ARP2000 Rod Bolts + $110.00

H13 Wrist Pins + $225.00

Total Seal AP Steel Rings + $240.00

Bore Size

CNC-T-Shirt

None

XXL

XXXL + $3.00

Qty

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Image is a representation of this item. Actual item may vary.

Description

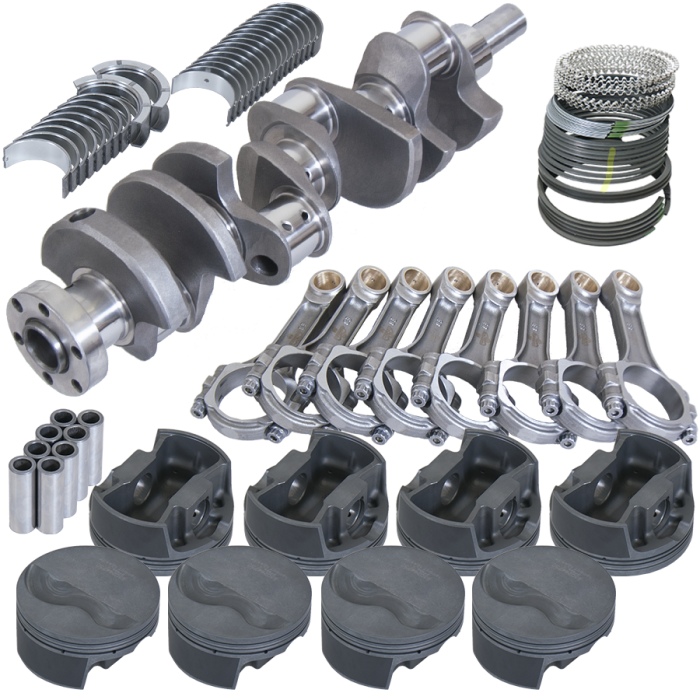

Eagle 347 Stroker competition rotating assemblies are designed to support engine builds up to 850 horsepower. With added upgrades this kits can support up to 1350 horsepower. Designed for forced induction applications.
Eagle 4340 forged steel crankshaft, 3.400 stroke, 1 or 2 piece rear main seal
Eagle 4340 steel H-Beam connecting rods with 7/16" ARP 8740 rod bolts, 5.400 length
JE 2618 Forged pistons with pins and lock
Performance file fit rings 1/16 1/16 3/16
H series Performance race rod and main bearings
Rotating Assembly kit has been Internal balanced in-house by CNC-Motorsports
Compression Ratio with 58cc 10.1:1
Compression Ratio with 64cc 9.5:1
Compression Ratio with 70cc 8.9:1
Compression Ratio with 72cc 8.7:1
*Note* Ford 302 engine block standard bore is 4.000, deck height 8.200
*Note* Pistons will not fit trick flow twisted wedge heads

Specifications

More Information
CNC Part Number	CNC-3470-JE
Price	$3,099.95
Sold As	Kit
Manufacturer's Part Number	3470-JE
Brands	Eagle, JE
Part Types	Engine Rotating Assembly Kit
Departments	Parts
Vehicle Make	Ford SB
Balanced Assembly	Yes
Balance Type	Internal
Crankshaft Material	4340 Forged Steel
Crankshaft Stroke	3.400
Piston Brand	JE
Piston Type	Dish
Rod Length	5.400
Piston Material	Forged
Custom Notices	⚠ PROP 65 WARNING
