Holley Terminator X Early Truck LS 24X/1X MPFI Kit 550-904T

Fits GM LS 4.8 / 5.3 / 6.0 Truck Engines, 24x Crank, 1x Cam, Multec 2 Injector Harness, USB/CAN Tuning Cable Included

$1,449.95

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

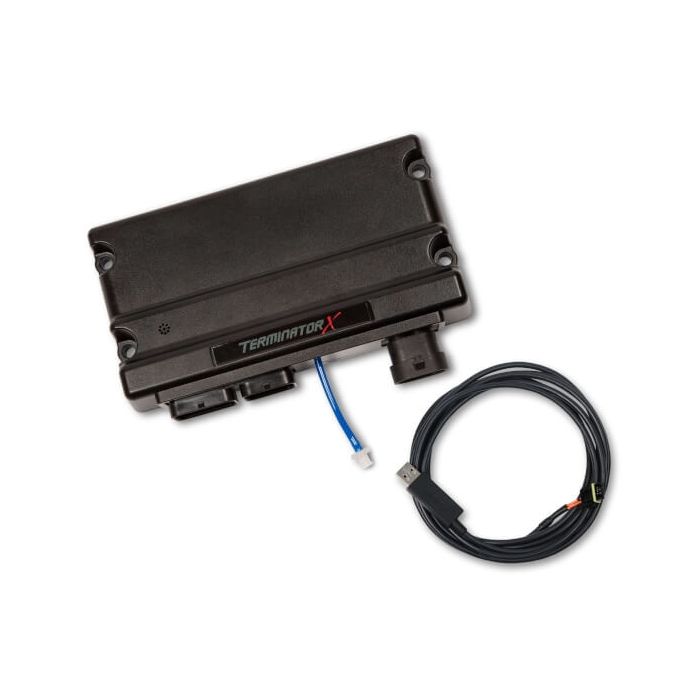

Image is a representation of this item. Actual item may vary.

Description

This Terminator X Kit features real-time fuel learn, high impedance injector drivers, an integrated 1 bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more.

For GM LS Engines with 24x crank reluctor and Multec 2 Injectors

Real-Time fuel map learn, takes the guesswork out of tuning your base fuel table.

High Impedance Injector Drivers will safely power most Stock LS injectors and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)

All of the new Terminator X systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.

MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)

4 Outputs – Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More

4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake

Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties

Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR

On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance

Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!

Includes CAN/USB tuning cable allowing you to configure your ECU and Tuning the engine in real-time.

The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!

Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, and coming soon, 12.3" digital dash support!

Free EFI Tuning Software for complete control of your Terminator X power plant

Includes: 24x LS Engine Main Harness - Multec 2 Injector Harness - Terminator X ECU - ECU Main Power Harness - Bosch LSU 4.9 Wideband Oxygen Sensor - Input/Output Harness - and assorted vacuum adapters.

Specifications

More Information
CNC Part Number	HOL-550-904T
Price	$1,449.95
Sold As	Single
Manufacturer's Part Number	550-904T
Brands	Holley
Part Types	Engine Management System
Departments	Parts
Vehicle Make	Chevy LS
ECU & Harnesses	ECU & Harness Kit
Harness Type	Injector
Custom Notices	⚠ PROP 65 WARNING
