Holley Terminator X Max LS 58X/4X MPFI Kit w/ DBW & TC 550-935T

Fits GM LS 4.8/5.3/6.0 LS Truck Engines and LS2/LS3, 58x Crank, 4x Cam, 4L60/4L80E Transmissions, Drive-by-wire and Throttle Body Control, EV1 Injectors, USB/CAN Tuning Cable Included

$2,149.95

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

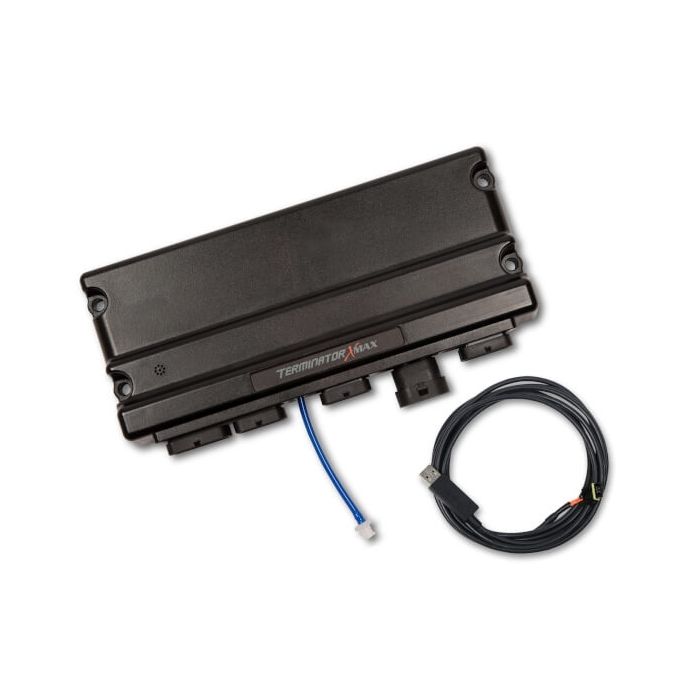

Image is a representation of this item. Actual item may vary.

Description

Whether you are building on a budget or a boosted race car, Terminator X has the features and technology you need at a price that won't break the bank!

Designed for GM LS 4.8/5.3/6.0 LS Truck Engines and LS2/LS3 with 58x Crank, 4x Cam and 4L60E/4L80E transmissions, Drive-by wire throttle body control, and EV1 Injectors

Real-Time fuel map learn, takes the guess work out of tuning your base fuel table.

High Impedance Injector Drivers will safely power most Stock LS injectors and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)

All of the new Terminator X Max systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.

On-Board 1bar MAP sensor is perfect for N/A or Nitrous engine combos. If your combination requires a 2+Bar, we recommend GM 12592525, and our adapter part number 558-416.

MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)

4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake

4 Outputs – Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More

Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties

Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR

Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!

On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance

Includes CAN/USB tuning cable allowing you to configure your ECU and Tuning the engine in real-time.

The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!

Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, and coming soon, 12.3" digital dash support!

Free EFI Tuning Software for complete control of your Terminator X power plant

Recommended Pedal part number - 10379038

Includes: 58x/4x LS Engine Main Harness - EV1 Injector Harness - DBW Throttle Body Harness - 4L60E/4L80E Transmission Control Harness - Terminator X MAX ECU - ECU Main Power Harness - Bosch LSU 4.9 Wideband Oxygen Sensor - Input/Output Harness - and assorted vacuum adapters.

Specifications

More Information
CNC Part Number	HOL-550-935T
Price	$2,149.95
Sold As	Single
Manufacturer's Part Number	550-935T
Brands	Holley
Part Types	Engine Management System
Departments	Parts
Vehicle Make	Chevy LS, GM
ECU & Harnesses	ECU & Harness Kit
Harness Type	Injector
