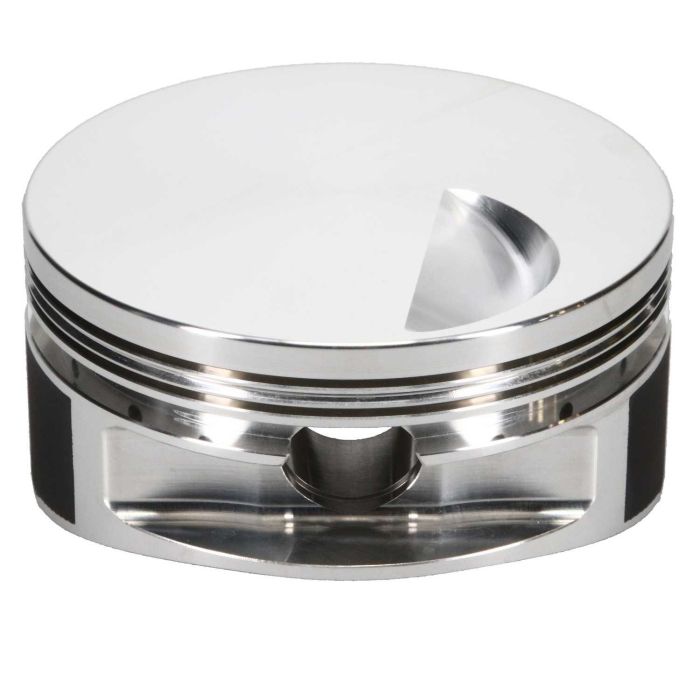

Image is a representation of this item. Actual item may vary.
Part Number:
JE-257980

JE Pistons 257980 Forged Big Block Flat Top 4.280 Bore, Standard Deck Block

JE Pistons, BBC 460, Bore 4.280, Stroke 4.000, Rod Length 6.135, Flat Top -3.0cc, 618 Grams, Set of 8

Special Price $987.29 Regular Price $1,096.99
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
JE Pistons for big blocks engines are compatible with forced induction or nitrous (EXCEPT 1.120 CD). Valve reliefs will accommodate oversized valves and long duration, tight lobe separation cams. Compression Height figured using 9.780" block height with zero deck clearance. Precision CNC machined ring grooves accept 1/16, 1/16, 3/16 rings. Will fit both open and closed chamber cylinder heads, including angle milled versions.

Includes:
  • Pin #990-2930-18-51S (150g) - 1.120" CD (Pin upgrade recommended after 800hp)
  • Pin #990-2930-18-51S (174g) - 1.245" CD and above
  • Double spiral locks (#990-042-CS)

    Compression Ratio:
  • 110cc 8.7:1
  • 118cc 8.2:1
  • 124cc 7.9:1
  • More Information
    CNC Part Number JE-257980
    Price $1,096.99
    Manufacturer's Part Number 257980
    Brands JE
    Part Types Engine Piston
    Departments Parts
    Vehicle Make Chevy BB
    Bore Size 4.280
    Crankshaft Stroke 4.000
    Rod Length 6.135
    Piston Type Flat Top
    Compression Height 1.640
    Piston Material 2618 Forged
    Piston Ring Size 1/16 1/16 3/16
    Wrist Pin Size 0.990
    Custom Notices ⚠ PROP 65 WARNING
