Image is a representation of this item. Actual item may vary.
Part Number:
JE-261666

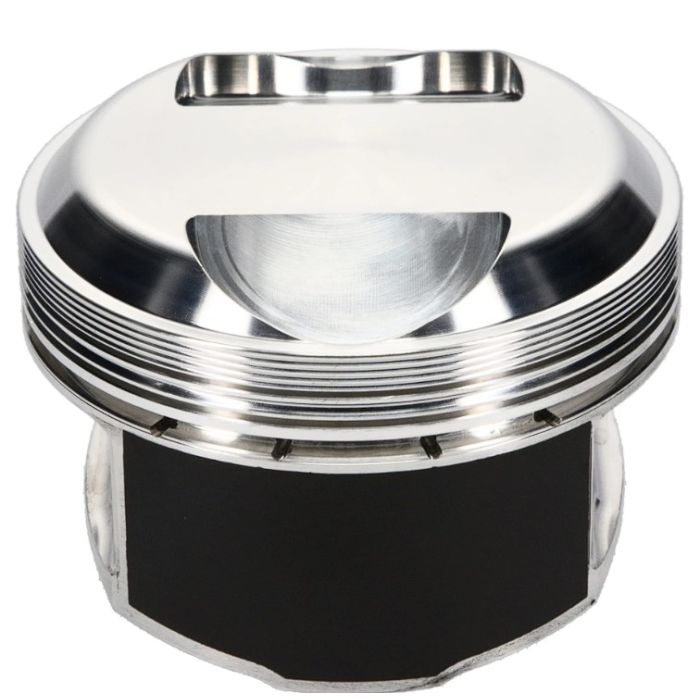

JE Pistons 261666 Forged Dome 92.0mm Bore

JE Pistons, Forged, Porsche 911 2.7L, Bore 92.0mm, Stroke 70.4mm, Rod Length 127.8mm, Dome +25.5cc, Grams 418, Set of 6

Special Price $1,372.49 Regular Price $1,524.99
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
JE Pistons designed for air-cooled 911 engines with a Nickel Ceramic bore, JE pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined for OEM style rings. (Except 2.7L)

Includes:
  • Pin fitting and wire locks
  • 9310 high carbon alloy or tool steel wrist pins
  • 866-2500-15-93C Upgraded Pin

    Compression Ratio:
  • 10.5:1
  • More Information
    CNC Part Number JE-261666
    Price $1,524.99
    Manufacturer's Part Number 261666
    Brands JE
    Part Types Engine Piston
    Departments Parts
    Vehicle Make Porsche
    Bore Size 92.00mm
    Crankshaft Stroke 2.772
    Rod Length 5.031
    Piston Type Dome
    Compression Height 1.339
    Piston Material 2618 Forged
    Piston Ring Size 1.0 1.2 2.8mm
    Wrist Pin Size 0.827
    Custom Notices ⚠ PROP 65 WARNING
