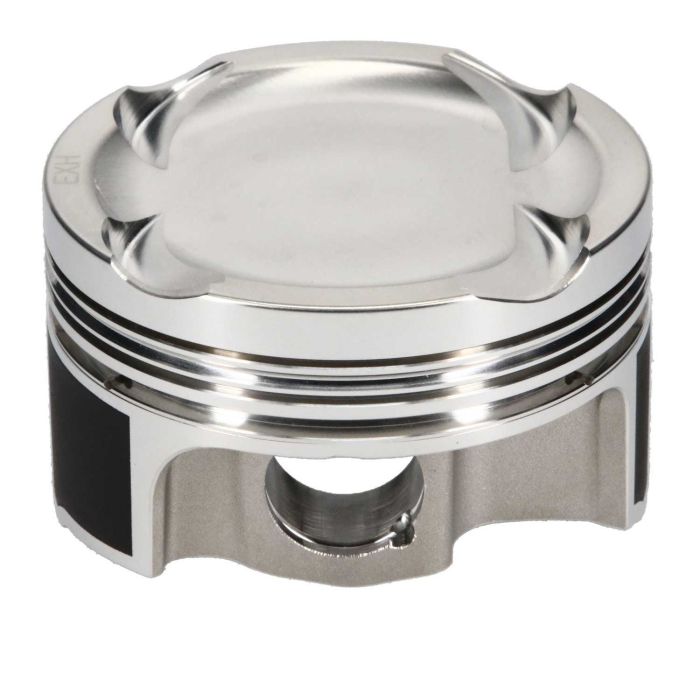

JE Pistons 317919 Forged Nissan Dish 90mm Bore

JE Pistons, Nissan Sentra/200SX SE-R/ Silvia/ 180SX & Bluebird SR20DET, Bore 90mm, Stroke 86mm, Rod Length 136.25mm, Dish -16.9cc, 330 Grams, Set of 8

Special Price $809.99 Regular Price $899.99

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Description

JE Pistons are machined by the most advanced CNC machining technologies available. JE forged Pistons are trusted by racers and engine builds for dependability. JE Pistons are compatible with boost and nitrous.

Crown requires no deburring or preparation

2618 T6 high tensile forged aluminum

NEW ASYMMETRICAL FSR forging! State of the art asymmetrical skirt technology reduces friction and mass while providing a more rigid and durable platform (Skirt Style F).

In this environment, higher boost levels or heavy nitrous usage necessitate JE's wrought 2618 alloy.

FSR pistons include offset pins for quiet operation.

Dished pistons feature smooth flowing radii for excellent flame travel.

1.0 x 1.2 x 2.8mm ring widths

.866 x 2.250 straight wall carbon steel wrist pin provided.

Pin fitting, rings and wire locks included

Compression ratios calculated with -.005" deck clearance & .040" gasket

Compression Ratio:

8.5:1

Specifications

More Information
CNC Part Number	JE-317919
Price	$899.99
Manufacturer's Part Number	317919
Brands	JE
Part Types	Engine Piston
Departments	Parts
Vehicle Make	Nissan SR20
Bore Size	90.00 mm
Crankshaft Stroke	3.386
Rod Length	5.364
Piston Type	Dish
Compression Height	1.253
Piston Material	2618 Forged
Piston Ring Size	1.0mm 1.2mm 2.8mm
Wrist Pin Size	0.866
