JE Pistons 321316 Forged Toyota 1FZ-Fe Dome 101.0mm Bore

JE Pistons, Toyota 1FZ-FE, Bore 101.0mm, Stroke 95mm, Rod Length 154mm, Dome 4.3cc, 497 Grams, Set of 6

$1,349.99

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

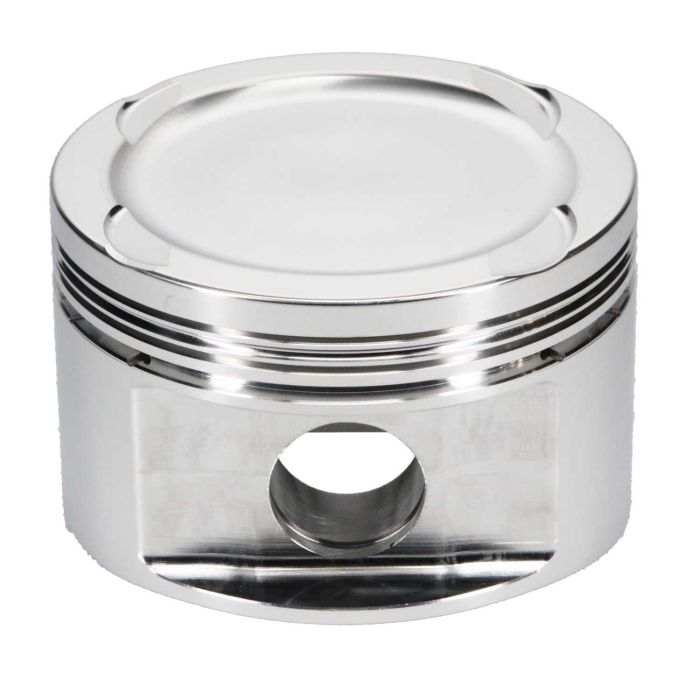

Image is a representation of this item. Actual item may vary.

Description

JE Pistons are machined by the most advanced CNC machining technologies available. JE forged Pistons are trusted by racers and engine builds for dependability. JE Pistons are compatible with boost and nitrous.

Dome/Dish requires no deburring or preparation

2618 T6 high tensile forged aluminum

JE designs are specifically engineered for extreme applications up to, and including, professional competition. In this environment, the higher compression ratios, highest boost, or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy.

Dome and dishes feature smooth flowing radii for excellent flame travel.

1.0 x 1.2 x 2.8mm ring widths.

1.024 x 2.500 straight wall carbon steel wrist pin provided.

Rings, Pin fitting, and wire locks included

Features offset pins for reduced noise

Compression Ratio:

10.0:1

Specifications

More Information
CNC Part Number	JE-321316
Price	$1,349.99
Sold As	Set
Manufacturer's Part Number	321316
Brands	JE
Part Types	Engine Piston
Departments	Parts
Vehicle Make	Toyota 1FZ-FE
Bore Size	3.976
Crankshaft Stroke	3.740
Rod Length	6.063
Piston Type	Dome
Compression Height	1.654
Piston Material	2618 Forged
Piston Ring Size	1.0mm 1.2mm 2.8mm
Wrist Pin Size	1.024
