Image is a representation of this item. Actual item may vary.
Part Number:
JE-325563

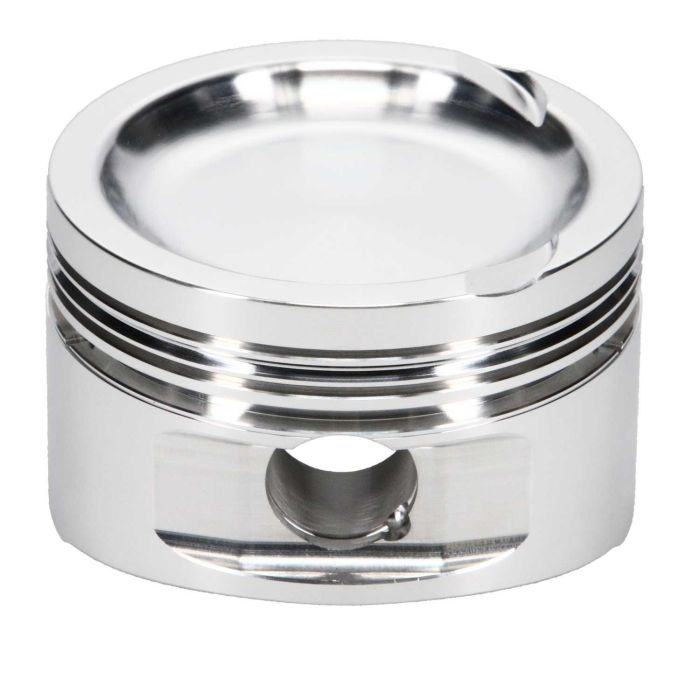

JE Pistons 325563 Forged Honda L15A VTEC Dish 73.0mm Bore

JE Pistons, Honda Fit/Jazz/City L15A Vtec, Bore 73.0mm, Stroke 89.4mm, Rod Length 149mm, Dish -4.4cc, 210 Grams, Set of 4

Special Price $809.99 Regular Price $899.99
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
JE Pistons are machined by the most advanced CNC machining technologies available. JE forged Pistons are trusted by racers and engine builds for dependability. JE Pistons are compatible with boost and nitrous.

  • Dome/Dish requires no deburring or preparation
  • 2618 T6 high tensile forged aluminum
  • JE designs are specifically engineered for extreme applications up to, and including, professional competition. In this environment, the higher compression ratios, highest boost or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy.
  • Dome and dishes feature smooth flowing radii for excellent flame travel.
  • 1.0 x 1.2 x 2.8mm ring widths.
  • .708 x 2.250 straight wall carbon steel wrist pin provided.
  • Pin fitting and wire locks included
  • Rings Now Included

    Compression Ratio:
  • 11.5:1
  • More Information
    CNC Part Number JE-325563
    Price $899.99
    Manufacturer's Part Number 325563
    Brands JE
    Part Types Engine Piston
    Departments Parts
    Bore Size 2.874
    Crankshaft Stroke 3.520
    Rod Length 5.866
    Piston Type Dish
    Compression Height 1.028
    Piston Material 2618 Forged
    Piston Ring Size 1.0 1.2 2.8mm
    Wrist Pin Size 0.708
