Image is a representation of this item. Actual item may vary.
Part Number:
JE-327844

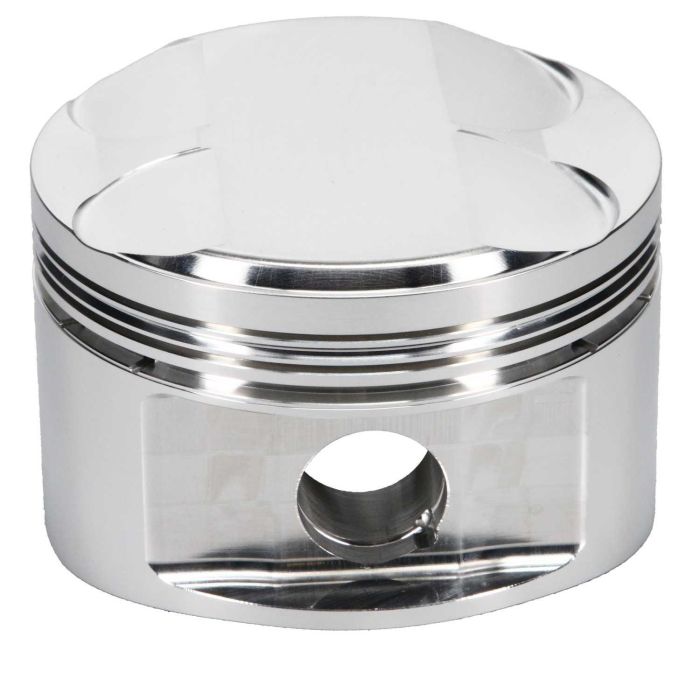

JE Pistons 327844 Forged Nissan TB48DE Dome 100mm Bore

JE Pistons, Nissan 2001+ TB48DE, Bore 100mm, Stroke 108mm, Rod Length 163.5mm, Dome +23.8cc, 474 Grams, Set of 6

Special Price $1,214.99 Regular Price $1,349.99
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
JE Pistons are machined by the most advanced CNC machining technologies available. JE forged Pistons are trusted by racers and engine builds for dependability. JE Pistons are compatible with boost and nitrous.

  • Dome/Dish requires no deburring or preparation
  • 2618 T6 high tensile forged aluminum
  • We have expanded our Nissan selection and have added the 2001+ Nissan TB48DE series product lines! These new pistons utilize our tried and true full round series forgings and are designed for the high output demands of forced induction and nitrous oxide. In addition, we have found ways to reduce weight and maintain the durability needed for both street and racing use.
  • Dome and dishes feature smooth flowing radii for excellent flame travel.
  • 1.0 x 1.2 x 2.8mm ring widths.
  • .905 x 2.500 x .150 wall 5115 steel wrist pin provided.
  • Rings, Pin fitting, and wire locks included

    Compression Ratio:
  • 11.4:1
  • More Information
    CNC Part Number JE-327844
    Price $1,349.99
    Manufacturer's Part Number 327844
    Brands JE
    Part Types Engine Piston
    Departments Parts
    Vehicle Make Nissan TB48
    Bore Size 3.937
    Crankshaft Stroke 4.252
    Rod Length 6.437
    Piston Type Dome
    Compression Height 1.467
    Piston Material 2618 Forged
    Piston Ring Size 1.0mm 1.2mm 2.8mm
    Wrist Pin Size 0.905
    Custom Notices ⚠ PROP 65 WARNING
