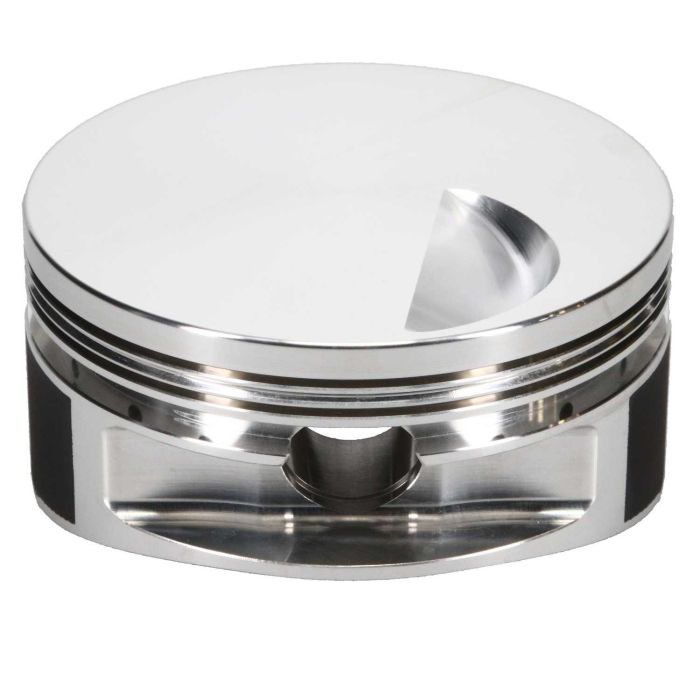

Image is a representation of this item. Actual item may vary.
Part Number:
JE-338238

JE Pistons 338238 Forged Big Block Flat Top 4.560 Bore, Standard/ Tall Deck Block

JE Pistons, BBC 555/ 621, Bore 4.560, Stroke 4.250/ 4.750, Rod Length 6.535/ 6.700, Flat Top -3.0cc, 592 Grams, Set of 8

Special Price $987.29 Regular Price $1,096.99
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
JE Pistons for big blocks engines are compatible with forced induction or nitrous (EXCEPT 1.120 CD). Valve reliefs will accommodate oversized valves and long duration, tight lobe separation cams. Compression Height figured using 9.780", 10.180", or 10.195" block height with zero deck clearance. Precision CNC machined ring grooves accept 1/16, 1/16, 3/16 rings. Will fit both open and closed chamber cylinder heads, including angle milled versions.

Includes:
  • Pin #990-2930-18-51S (150g) - 1.120" CD (Pin upgrade recommended after 800hp)
  • Pin #990-2930-18-51S (174g) - 1.245" CD and above
  • Double spiral locks (#990-042-CS)

    Compression Ratio:
  • 110cc 10.2:1/ 11.3:1
  • 118cc 9.6:1/ 10.6:1
  • 124cc 9.2:1/ 10.2:1
    Note: *Made to Order. Oil rail supports included.*
  • More Information
    CNC Part Number JE-338238
    Price $1,096.99
    Manufacturer's Part Number 338238
    Brands JE
    Part Types Engine Piston
    Departments Parts
    Vehicle Make Chevy BB
    Bore Size 4.560
    Crankshaft Stroke 4.250, 4.750
    Rod Length 6.535, 6.700
    Piston Type Flat Top
    Compression Height 1.120
    Piston Material 2618 Forged
    Piston Ring Size 1/16 1/16 3/16
    Wrist Pin Size 0.990
    Custom Notices ⚠ PROP 65 WARNING
