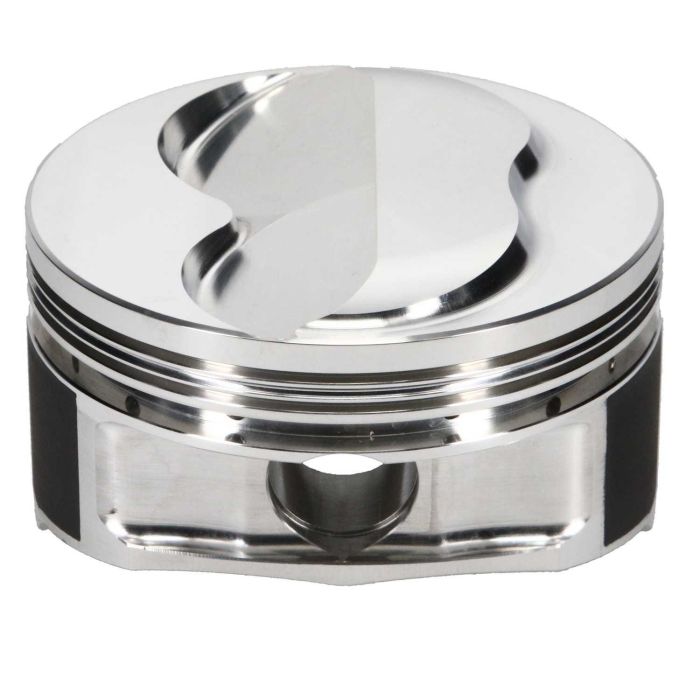

JE Pistons 338252 Forged 302/ 351W Big Bore Dome 4.155 Bore

JE Pistons, SBF 336/ 445/ 434, Bore 4.155, Stroke 3.100/ 4.100/ 4.000, Rod Length 5.400/ 6.200/ 6.250, Dome +6.5cc, 461 Grams, Set of 8

Special Price $969.29 Regular Price $1,076.99

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Description

JE Pistons designed for use in aftermarket race blocks, these big bore domes will accommodate larger valves and long duration, tight lobe separation cams. Compatible with most 20° Wedge cylinder heads and will accept moderate nitrous. Precision CNC machined ring grooves accept 1/16", 1/16", 3/16" rings. Pin upgrade recommended above 700hp.

Includes:

Pin #927-2750-15-51S (130g)

Double spiro locks (#927-042-CS)

Double pin oilers

Compression Ratio:

56cc 12.6:1/ 16.4:1/ 16.1:1

60cc 11.9:1/ 15.5:1/ 15.1:1

64cc 11.2:1/ 14.6:1/ 14.3:1
Note: *Made to Order.*

Specifications

More Information
CNC Part Number	JE-338252
Price	$1,076.99
Manufacturer's Part Number	338252
Brands	JE
Part Types	Engine Piston
Departments	Parts
Vehicle Make	Ford SB
Bore Size	4.155
Crankshaft Stroke	3.100, 4.000, 4.100
Rod Length	5.400, 6.200, 6.250
Piston Type	Dome
Compression Height	1.230
Piston Material	2618 Forged
Piston Ring Size	1/16 1/16 3/16
Wrist Pin Size	0.927
