Image is a representation of this item. Actual item may vary.
Part Number:
JE-353236

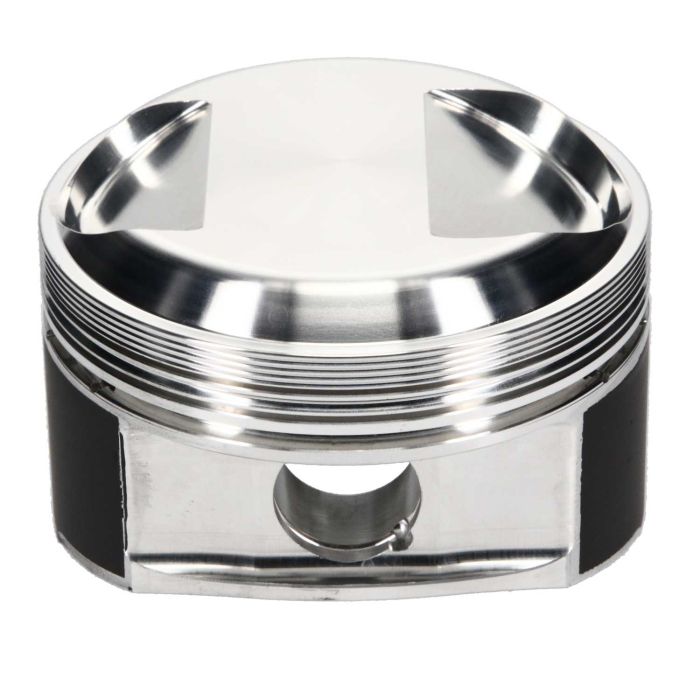

JE Pistons 353236 Forged Porsche 911 2.7L Dome 90mm Bore

JE Pistons, Porsche 911 2.7L, Bore 90mm, Stroke 70.4mm, Rod Length 127.8mm, Dome 27.3cc, Set of 4

Special Price $1,687.49 Regular Price $1,874.99
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
JE Pistons are machined by the most advanced CNC machining technologies available. JE forged Pistons are trusted by racers and engine builds for dependability. JE Pistons are compatible with boost and nitrous.

  • Crown requires no deburring or preparation
  • 2618 T6 high tensile forged aluminum
  • NEW ASYMMETRICAL FSR forging! State of the art asymmetrical skirt technology reduces friction and mass while providing a more rigid and durable platform (Skirt Style F).
  • In this environment, higher boost levels or heavy nitrous usage necessitate JE's wrought 2618 alloy.
  • FSR pistons include offset pins for quiet operation.
  • FSR pistons feature a new Smooth Finished Crown process for excellent flame travel.
  • 1.0 x 1.2 x 2.8mm ring widths
  • .787 x 2.250 straight wall carbon steel wrist pin provided.
  • Pin fitting, rings and wire locks included

    Compression Ratio:
  • 10.5
  • More Information
    CNC Part Number JE-353236
    Price $1,874.99
    Manufacturer's Part Number 353236
    Brands JE
    Part Types Engine Piston
    Departments Parts
    Vehicle Make Peugeot
    Bore Size 90.00 mm
    Crankshaft Stroke 2.772
    Rod Length 5.031
    Piston Type Dome
    Compression Height 1.335
    Piston Material 2618 Forged
    Piston Ring Size 1.0 1.2 2.8mm
    Wrist Pin Size 0.866
    Custom Notices ⚠ PROP 65 WARNING
