Image is a representation of this item. Actual item may vary.
Part Number:
JE-359151

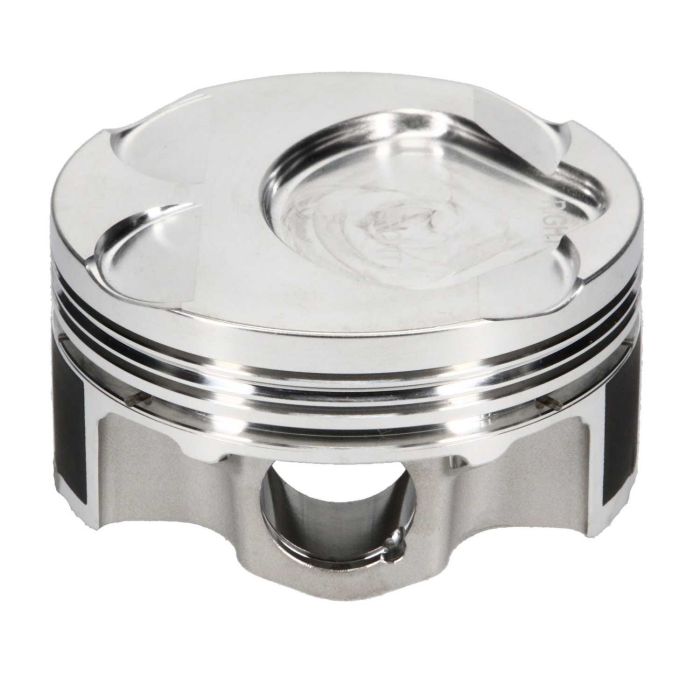

JE Pistons 359151 Forged Subaru BRZ FA20 Dish 86.25mm Bore

JE Pistons, Subaru BRZ FA20/ Toyota FRS 4U-GSE/ Toyota GT-86 2012+, Bore 86.25mm, Stroke 86mm, Rod Length 129.3mm, Dish -10.5cc, 318 Grams, Set of 8

Special Price $809.99 Regular Price $899.99
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
JE Pistons are machined by the most advanced CNC machining technologies available. JE forged Pistons are trusted by racers and engine builds for dependability. JE Pistons are compatible with boost and nitrous.

  • 2618 T6 high tensile forged aluminum
  • JE designs are specifically engineered for extreme applications up to, and including, professional competition. In this environment, the higher compression ratios, highest boost, or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy.
  • Dome and dishes feature smooth flowing radii for excellent flame travel.
  • 1.0 x 1.2 x 2.8mm ring widths.
  • .866 x 2.250 straight wall carbon steel wrist pin provided.
  • Pin fitting and wire locks included
  • Rings Now Included

    Compression Ratio:
  • 10.5:1
  • More Information
    CNC Part Number JE-359151
    Price $899.99
    Manufacturer's Part Number 359151
    Brands JE
    Part Types Engine Piston
    Departments Parts
    Vehicle Make Subaru FA20
    Bore Size 3.396
    Crankshaft Stroke 3.386
    Rod Length 5.091
    Piston Type Dish
    Compression Height 1.289
    Piston Material 2618 Forged
    Piston Ring Size 1.0mm 1.2mm 2.8mm
    Wrist Pin Size 0.866
    Custom Notices ⚠ PROP 65 WARNING
