Image is a representation of this item. Actual item may vary.
Part Number:
JE-361298

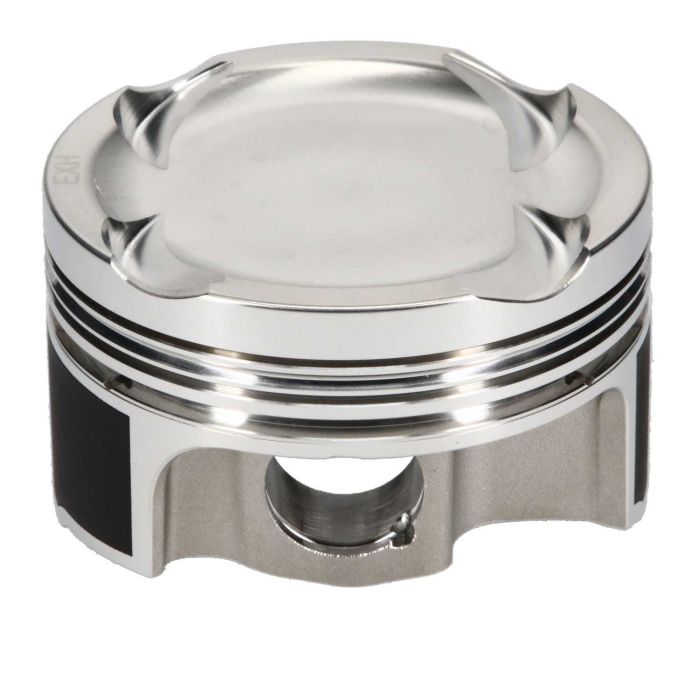

JE Pistons 361298 Forged Nissan Dish 86.25mm Bore

JE Pistons, Nissan Sentra/200SX SE-R/ Silvia/ 180SX & Bluebird SR20DET, Bore 86.25mm, Stroke 86mm, Rod Length 136.25mm, Dish -11.5cc, Set of 8

Special Price $809.99 Regular Price $899.99
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
JE Pistons are machined by the most advanced CNC machining technologies available. JE forged Pistons are trusted by racers and engine builds for dependability. JE Pistons are compatible with boost and nitrous.

  • Crown requires no deburring or preparation
  • 2618 T6 high tensile forged aluminum
  • NEW ASYMMETRICAL FSR forging! State of the art asymmetrical skirt technology reduces friction and mass while providing a more rigid and durable platform (Skirt Style F).
  • In this environment, higher boost levels or heavy nitrous usage necessitate JE's wrought 2618 alloy.
  • FSR pistons include offset pins for quiet operation.
  • Dome pistons feature new Smooth Finished Crown process for excellent flame travel.
  • 1.0 x 1.2 x 2.8mm ring widths
  • .866 x 2.250 straight wall carbon steel wrist pin provided.
  • Pin fitting, rings and wire locks included
  • Compression ratios calculated with -.005" deck clearance & .040" gasket

    Compression Ratio:
  • 8.5:1
  • More Information
    CNC Part Number JE-361298
    Price $899.99
    Manufacturer's Part Number 361298
    Brands JE
    Part Types Engine Piston
    Departments Parts
    Vehicle Make Nissan SR20
    Bore Size 3.396
    Crankshaft Stroke 3.386
    Rod Length 5.364
    Piston Type Dish
    Compression Height 1.253
    Piston Material 2618 Forged
    Piston Ring Size 1.0mm 1.2mm 2.8mm
    Wrist Pin Size 0.866
