LS Billet Crankshaft, 4.000 Stroke, Eagle 334540016100, No Reluctor

Chevy LS, Billet, 4.000 Stroke, 2.559 Main, 2.100 Rod Journal, 6.125 or Longer Rod, Internal Balance, No Reluctor Reluctor

$2,181.95

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

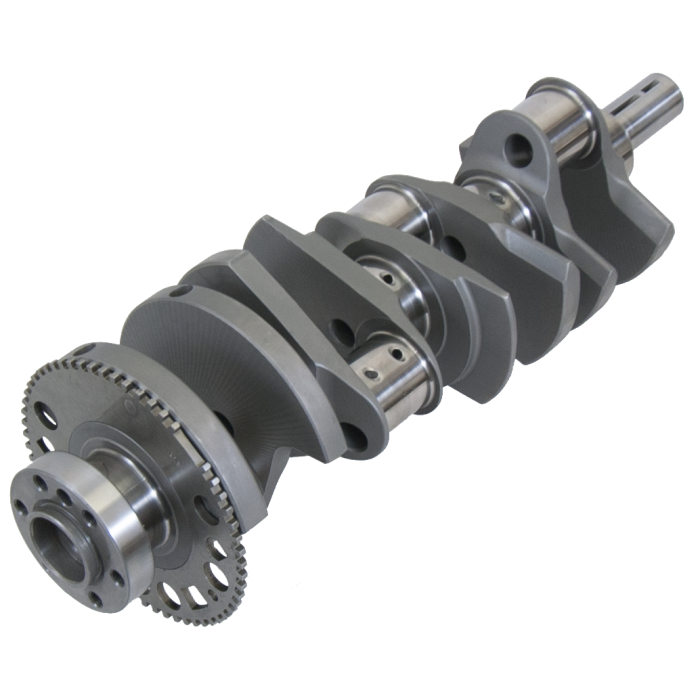

Image is a representation of this item. Actual item may vary.

Description

Eagle billet 4340 steel crankshafts feature .125' fillet radiuses for superior strength so chamfered / narrowed bearings required, center counterweight design provides superior stability at high rpm and power levels, nitrided surface, & micropolished to < 2 ra.

material: billet 4340 steel

intended balance: internal

target bobweight: 1800

stroke: 4.000"

rod journal: 2.100"

rod journal width: 1.900"

main journals: 2.559"

minimum rod length: 6.125"

typical weight: 56

snout diameter: 1.480"

flywheel bolts: 6

Specifications

More Information
CNC Part Number	ESP-334540016100
Price	$2,181.95
Sold As	Single
Manufacturer's Part Number	334540016100
Brands	Eagle
Part Types	Crankshaft
Departments	Parts
Vehicle Make	Chevy LS
Balance Type	Internal
Crankshaft Stroke	4.000
Crankshaft Material	Billet 4340
Main Journal	2.559
Rear Main Seal	1 Piece
Rod Journal	2.100
Custom Notices	⚠ PROP 65 WARNING
