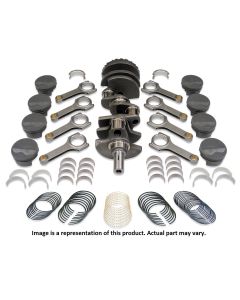

Image is a representation of this item. Actual item may vary.
Part Number:
LUN-49602-M

Lunati BB Chevy 496 Balanced Stroker Kit 13.0:1 Mahle Pistons

BBC 496 Stroker Kit, Lunati Crankshaft 4.250, Lunati H Beam Rods 6.385, H Series Rod and Main Bearings, +43cc Dome Mahle Pistons & Rings, 2 Piece Rear Main Seal, Balanced Assembly

$3,201.95
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
CNC-Motorsports takes great pride in offer Lunati 496 rotating assembly kits. This rotating assembly kit featuring Lunati crankshaft, Lunati H beam rods with ARP2000 rod bolts, and Mahle pistons.This kit is designed for the racer looking for quality not breaking the bank. This kit will support up to 1200 horsepower applications.

Lunati 4340 Forged Crankshaft, 4.250 Stroke, 2 Piece rear main seal (Gen IV)
Lunati H beam rods, 6.385 Length with ARP 2000 Rod Bolts
Mahle power pak performance pistons (1.270 C/H)
Mahle performance 1.5mm top rings, 1.5mm second rings, 3.0mm oil rings
High performance H series main and rod bearings
Pistons are designed specifically to work with most any 24/26 degree conventional Big Block Chevy cylinder head
Compression ratio w/112cc chamber: 13.9:1 (+43cc Dome)
Compression ratio w/118cc chamber: 13.0:1 (+43cc Dome)
Compression ratio w/124cc chamber: 12.2:1 (+43cc Dome)
Short Deck kit, 9.800
*This rotating assembly kit has been Internally balanced in-house by CNC-Motorsports*
More Information
CNC Part Number LUN-49602-M
Price $3,201.95
Manufacturer's Part Number 49602-M
Brands Lunati, Mahle
Part Types Engine Rotating Assembly Kit
Departments Parts
Vehicle Make BB Chevy
Balanced Assembly Yes
Balance Type Internal
Crankshaft Material 4340 Forged Steel
Crankshaft Stroke 4.250
Piston Brand Mahle
Piston Type Dome
Rod Length 6.385
Rear Main Seal 2 Piece
Piston Material 4032 Forged
