Image is a representation of this item. Actual item may vary.
Part Number:
MAH-197815365

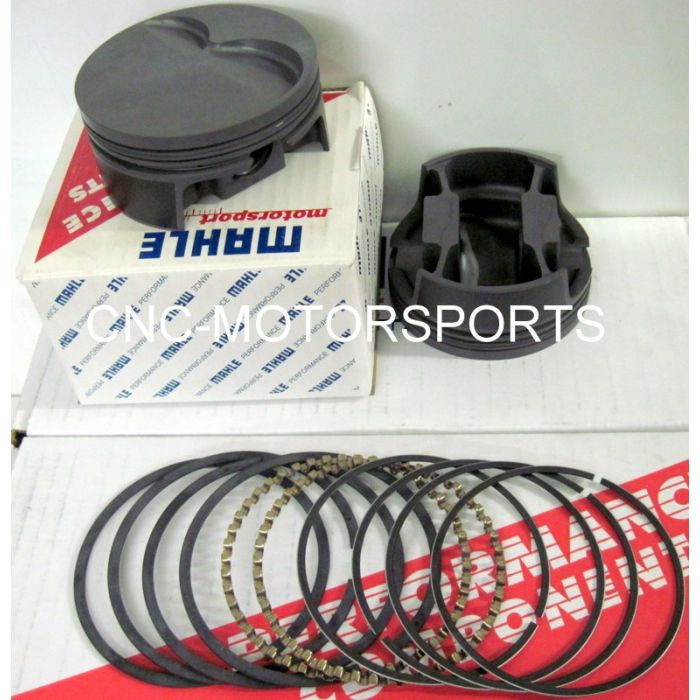

Mahle Pistons 197815365 Forged Flat Top SB Oldsmobile 4.065 Bore

Small Block Oldsmobile / 350 Flat Top, Bore 4.065, Stroke 3.385, Rod Length 6.000, Flat Top -10.2cc, 502 Grams Advertised, Set of 8 Pistons and Rings Included.

Special Price $783.08 Regular Price $851.17
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
Mahle pistons were designed as a completely finished drop in forged piston assembly. Other than filling the included performance piston ring set, everything is done for you. Mahle has over 80 plus years of piston manufacturing making pistons from OEM to formula 1 racing. Mahle uses only the best technology to make these pistons. Mahle pistons come standard with anti-friction skirt coating for reduced drag. Forged from 4032 low expansion aluminum alloy for high strength and reduced piston to wall clearance. They have Radiused Valve Pockets. Forced Pin Oiler is used for increased wrist pin lubrication. .984 High-Quality Steel Wrist Pin, Precision Pin fitting, Performance 1.0, 1.0, 2.0mm rings, and Race Proven Round Wire Locks are included.

Compression Ratio with 65cc Heads 9.6:1.
Compression Ratio with 70cc Heads 9.1:1.
Note: 0.984" Pin requires stock 0.980" Rod to be honed.
More Information
CNC Part Number MAH-197815365
Price $851.17
Manufacturer's Part Number 197815365
Brands Mahle
Part Types Engine Piston
Departments Parts
Vehicle Make Oldsmobile
Bore Size 4.065
Crankshaft Stroke 3.385
Rod Length 6.000
Piston Type Flat Top
Compression Height 1.625
Piston Material 4032 Forged
Piston Ring Size 1.0mm 1.0mm 2.0mm
Wrist Pin Size 0.984
