Mahle Pistons 930217608 Forged Flat Top Chevy LS 3.908 Bore

Mahle Pistons, LS1, Bore 3.908, Stroke 3.622, Rod Length 6.098, Flat Top -4.1cc, 411 Grams Advertised Weight, Set of 8 Pistons and Rings Included.

Special Price $763.23 Regular Price $829.60

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

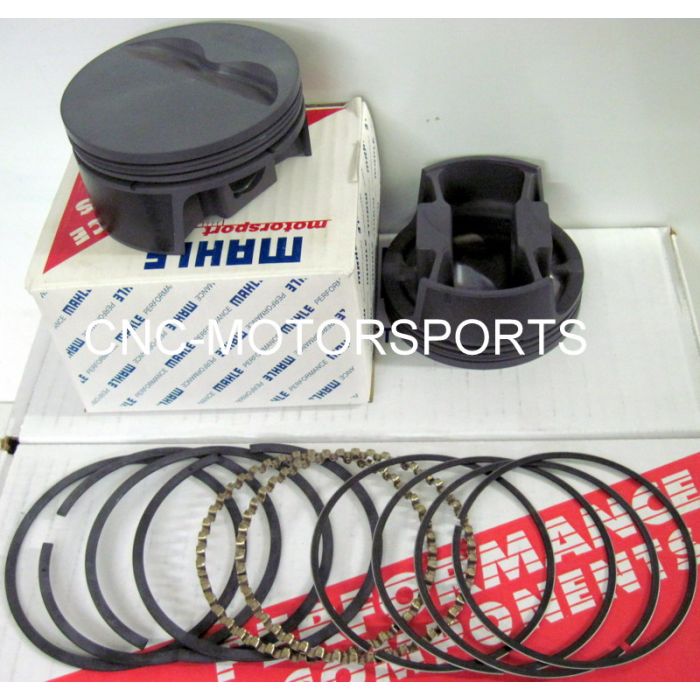

Image is a representation of this item. Actual item may vary.

Description

Mahle pistons were designed as a completely finished drop in forged piston assembly. Other than filling the included performance piston ring set, everything is done for you. Mahle has over 80 plus years of piston manufacturing making pistons from OEM to formula 1 racing. Mahle uses only the best technology to make these pistons. Mahle pistons come standard with anti-friction skirt coating for reduced drag. Mahle pistons are forged from 4032 low expansion aluminum alloy for high strength for a reduced piston to wall clearance. Forced Pin Oiling is used for increased wrist pin lubrication. Pin bores are CNC precision-machined .945" High-Quality Steel Wrist Pin (125g), Performance 1.0, 1.0, 2.0mm rings, and Race Proven Round Wire Locks are included.

Compression Ratio with 64cc Heads 10.1:1.
***Replaces part number LS1340908F04***

Specifications

More Information
CNC Part Number	MAH-930217608
Price	$829.60
Sold As	Set
Manufacturer's Part Number	930217608
Brands	Mahle
Part Types	Engine Piston
Departments	Parts
Vehicle Make	Chevy LS
Bore Size	3.908
Crankshaft Stroke	3.622
Rod Length	6.098
Piston Type	Flat Top
Compression Height	1.340
Piston Material	4032 Forged
Piston Ring Size	1.0 1.0 2.0mm
Wrist Pin Size	0.945
Custom Notices	⚠ PROP 65 WARNING
