Image is a representation of this item. Actual item may vary.
Part Number:
MAH-930219900

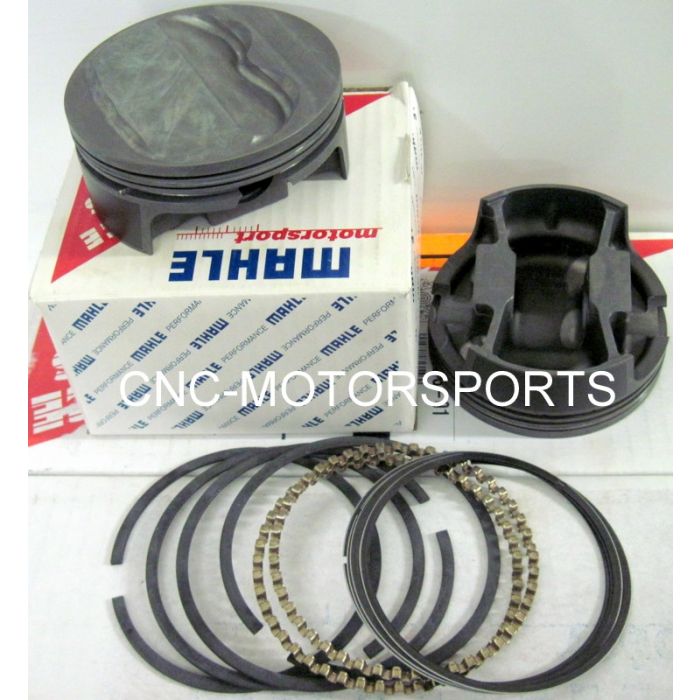

Mahle Pistons 930219900 Forged Dome 5.3L Chevy LS 3.800 Bore

Mahle Pistons, LS 5.3L, Bore 3.800, Stroke 3.622, Rod Length 6.098, Dome 8.5cc, 449 Grams Advertised Weight, Set of 8 Pistons and Rings Included.

Special Price $923.51 Regular Price $1,003.81
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
Mahle pistons were designed as a completely finished drop in forged piston assembly. Other than filling the included performance piston ring set, everything is done for you. Mahle has over 80 plus years of piston manufacturing making pistons from OEM to formula 1 racing. Mahle uses only the best technology to make these pistons. Mahle pistons come standard with anti-friction skirt coating for reduced drag. Mahle pistons are forged from 2618 low expansion aluminum alloy for high strength for a reduced piston to wall clearance. Forced Pin Oiling is used for increased wrist pin lubrication. Pin bores are CNC precision-machined. .927" High-Quality Steel Wrist Pin (118g), Performance 1.0, 1.0, 2.0mm rings, and Race Proven Round Wire Locks are included.

Compression Ratio with 65cc Heads 11.5:1.
More Information
CNC Part Number MAH-930219900
Price $1,003.81
Manufacturer's Part Number 930219900
Brands Mahle
Part Types Engine Piston
Departments Parts
Vehicle Make Chevy LS
Bore Size 3.800
Crankshaft Stroke 3.622
Rod Length 6.098
Piston Type Dome
Compression Height 1.330
Piston Material 2618 Forged
Piston Ring Size 1.0 1.0 2.0mm
Wrist Pin Size 0.945
Custom Notices ⚠ PROP 65 WARNING
