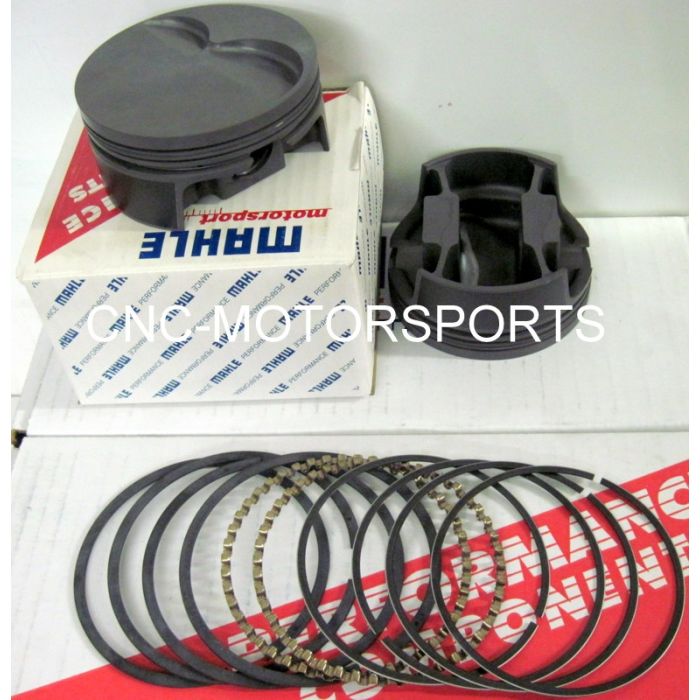

Mahle Pistons 930227000 LS LSX Combo Flat Top 4.000 Bore

LSX Mahle Pistons, LS1 LS2 LS3 LS7, Bore 4.000, Stroke 3.622, Rod Length 6.098, -5.8cc Flat Top, 440 grams, .945 Pin, 1.330 Pin Height, Set of 8 Pistons and Rings Included.

Special Price $827.49 Regular Price $899.45

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Description

Mahle Motorsports LSX Combo Pistons with combination valve pockets that will fit LS1, LS2, LS3 and LS7 style cylinder heads. Mahle LSX combo pistons were designed for high output, naturally aspirated, and power adder applications with versatility and budget in mind.

Mahle pistons offer the following features:

High strength, 2618 aluminum alloy with a slipper skirt forging

HV385 Coated steel 1.0mm top, Napier 1.0mm 2nd and 2.0mm Oil ring set

Top ring land down .250 and .200 2nd land thickness

Phosphate coated and MAHLE's GRAFAL® skirt coating to reduce drag and wear

Combination valve pocket, Fits LS1, LS2 LS3/L92 15 degree, and LS7 12 degree heads

Compression Ratio 65cc 10.4:1

Compression Ratio 70cc 9.9:1

Compression Ratio 72cc 9.7:1

Specifications

More Information
CNC Part Number	MAH-930227000
Price	$899.45
Manufacturer's Part Number	930227000
Brands	Mahle
Part Types	Engine Piston
Departments	Parts
Vehicle Make	Chevy LS
Bore Size	4.000
Crankshaft Stroke	3.622
Rod Length	6.098
Piston Type	Flat Top
Compression Height	1.330
Piston Material	2618 Forged
Piston Ring Size	1.0 1.0 2.0mm
Wrist Pin Size	0.945
Custom Notices	⚠ PROP 65 WARNING
