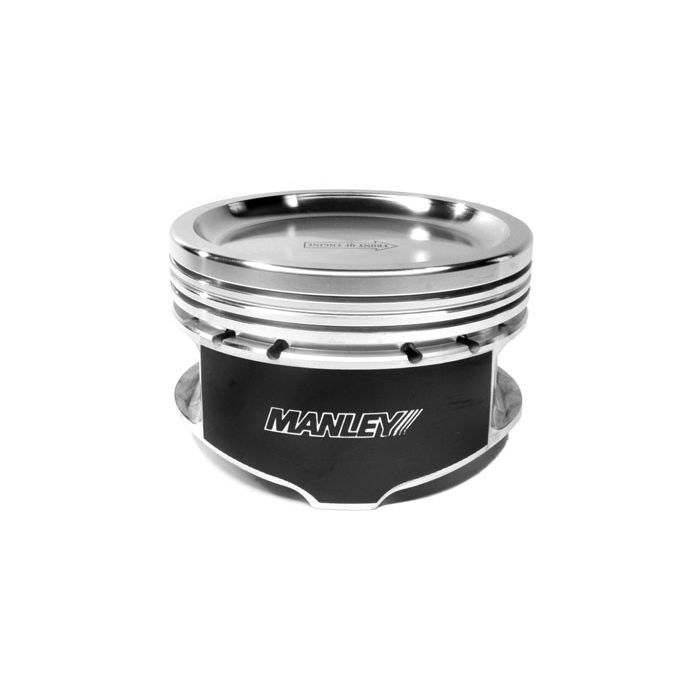

Manley Platinum Forged Dish Pistons 3.647 Bore 628014C-6 Ford XR-6

Ford XR-6 Turbo 4.0L BA Falcon, 3.647" Bore, 6.058" Rod Length, 3.910" Stroke, Compression Ratio 8.5:1, Dish -16cc, 389 Grams, Set of 6 Pistons and Rings Included

$1,076.92

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Image is a representation of this item. Actual item may vary.

Description

Manley Platinum Ford XR-6 Pistons are forged from 2618 high strength material lightweight design. Offset wrist pin designed for quiet start-ups. Features a full banded skirt design for increased skirt stability, perfect ring groove to skirt squareness, and a pressure balance groove. Chrome Moly pin, Steel top ring sets, and round wire locks are included. Recommended piston clearance .0030" measured .850" from the bottom of the oil ring.

Specifications

More Information
CNC Part Number	MAN-628014C-6
Price	$1,076.92
Sold As	Set
Manufacturer's Part Number	628014C-6
Brands	Manley
Part Types	Engine Piston
Departments	Parts
Vehicle Make	Ford XR-6
Bore Size	3.647
Crankshaft Stroke	3.910
Rod Length	6.058
Piston Type	Dish
Compression Height	1.215
Piston Material	2618 Forged
Piston Ring Size	1.2 1.5 3.0mm
Wrist Pin Size	0.866
