Molnar 424 6.1L Hemi Stroker Kit, 10.75:1 CP Forged Pistons

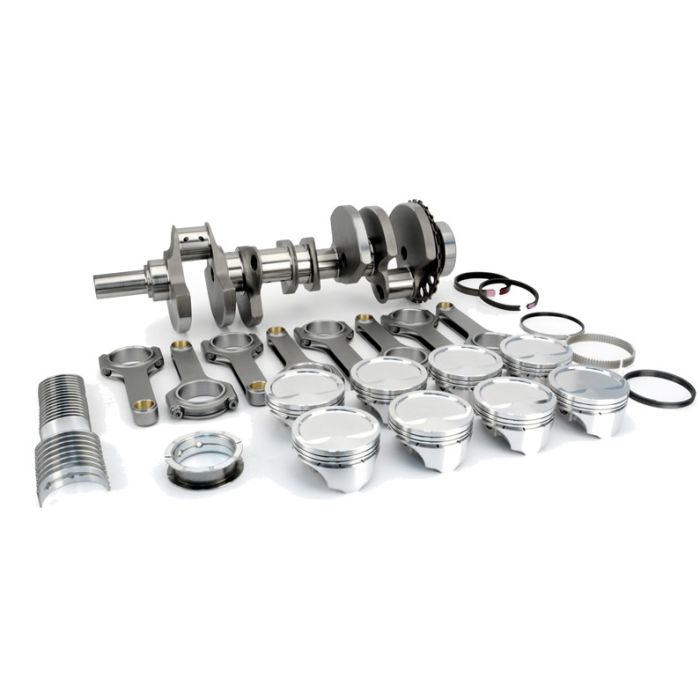

424 Cubic Inch Stroker, Chrysler 6.1L Hemi Stroker Rotating Assembly Kit, Molnar 4340 Forged Steel Crankshaft 4.050 Stroke, Molnar 6.125 H-Beam Rods, CP Bullet Forged Dish Pistons -10.6cc, Performance Rings and H Series Bearings Included

$3,449.95

Kit Upgrades

Internal Balanced Rotating Assembly + $450.00

VVT Spacer + $100.00

Bore Size

4.065 .010 (421) BH613-1075-010

4.080 .025 (424) BH613-1075-025

CNC-T-Shirt

XXL

XXXL + $3.00

Qty

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Image is a representation of this item. Actual item may vary.

Description

6.1L Hemi Molnar Forged rotating assemblies are designed to support engine builds up to 1200 horsepower
Molnar 4340 forged steel crankshaft 4.050 Stroker crankshaft *32 Tooth Tone Ring*
Molnar Forged 4340 steel H-Beam rods with 7/16" ARP2000 rod bolts, 6.125 Length
CP Bullet 2618 Forged pistons, (C/H 1.115)
CP piston ring set, 1.5mm steel gas nitride top rings, 1.5mm Napier second rings, 3.0mm oil rings, good for boost or nitrous
Standard Heavy-duty .200 wall wrist pins
H Series performance rod bearings and main bearings and thrust washer
Rotating assembly comes unbalanced, balancing is required before installation.
Compression Ratio with 64cc heads:
Compression Ratio with 73cc heads: 10.75:1
Compression Ratio with 85cc heads:

*Note Standard bore size for 6.1L (4.055)

Specifications

More Information
CNC Part Number	MOL-426409
Price	$3,449.95
Sold As	Kit
Manufacturer's Part Number	426409
Brands	CP, Molnar
Part Types	Engine Rotating Assembly Kit
Departments	Parts
Vehicle Make	Chrysler Hemi
Balanced Assembly	No
Balance Type	Internal
Crankshaft Material	4340 Forged Steel
Crankshaft Stroke	4.050
Piston Brand	CP
Piston Type	Dish
Rod Length	6.125
Piston Material	Forged
Custom Notices	⚠ PROP 65 WARNING
