Molnar BBC 540 555 Stroker Balanced Rotating Assembly 10.4:1 SRP Pistons

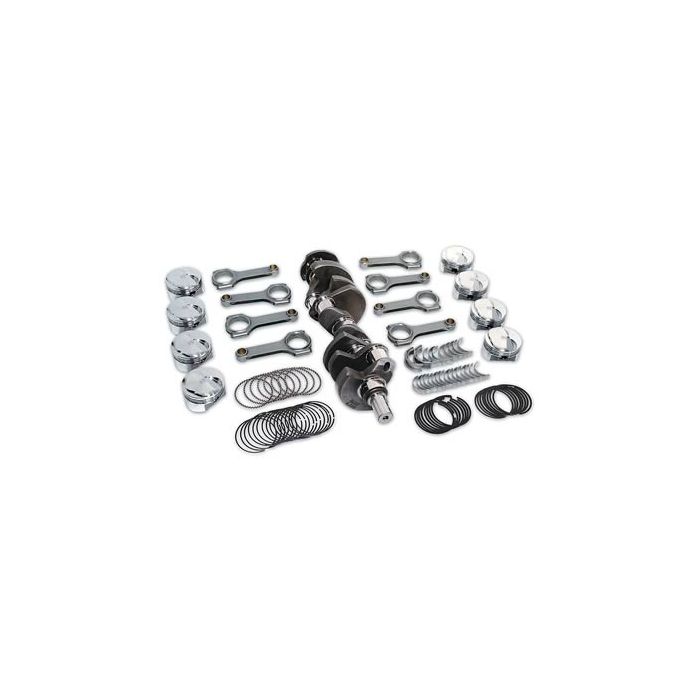

BBC 540 555 Stroker Kit, Molnar Crankshaft 4.250, Molnar H Beam Rods 6.385, H Series Rod and Main Bearings, +10cc Dome SRP Pistons & Rings, 2 Piece Rear Main Seal, Balanced Assembly

$3,380.95

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Description

CNC-Motorsports takes great pride in offer Molnar 540 555 rotating assembly kit. This rotating assembly kit featuring Molnar crankshaft, Molnar H beam rods with ARP2000 rod bolts, and SRP pistons.This kit is designed for the racer looking for quality not breaking the bank. This kit will support up to 1200 horsepower applications.

Molnar 4340 Forged Crankshaft, 4.250 Stroke, 2 Piece rear main seal (Gen IV)
Molnar H beam rods, 6.385 Length with ARP 2000 Rod Bolts
Forged SRP performance pistons (1.270 C/H)
JE/Total Seal performance 1/16 top rings, 1/16 second rings and 3/16 oil rings
High performance H series main and rod bearings
Pistons are designed specifically to work with most any 24/26 degree conventional Big Block Chevy open chamber cylinder head
Compression ratio w/112cc chamber: 10.9:1 (+10cc Dome)
Compression ratio w/118cc chamber: 10.4:1 (+10cc Dome)
Compression ratio w/124cc chamber: 9.9:1 (+10cc Dome)
Short Deck kit, 9.800
*This rotating assembly kit has been Internally balanced in-house by CNC-Motorsports*

Specifications

More Information
CNC Part Number	CNC-54005-MRP
Price	$3,380.95
Manufacturer's Part Number	54005-MRP
Brands	Molnar, SRP
Part Types	Engine Rotating Assembly Kit
Departments	Parts
Vehicle Make	BB Chevy
Balanced Assembly	Yes
Balance Type	Internal
Crankshaft Material	4340 Forged Steel
Crankshaft Stroke	4.250
Piston Brand	SRP
Piston Type	Dome
Rod Length	6.385
Rear Main Seal	2 Piece
Piston Material	4032 Forged
Custom Notices	⚠ PROP 65 WARNING
