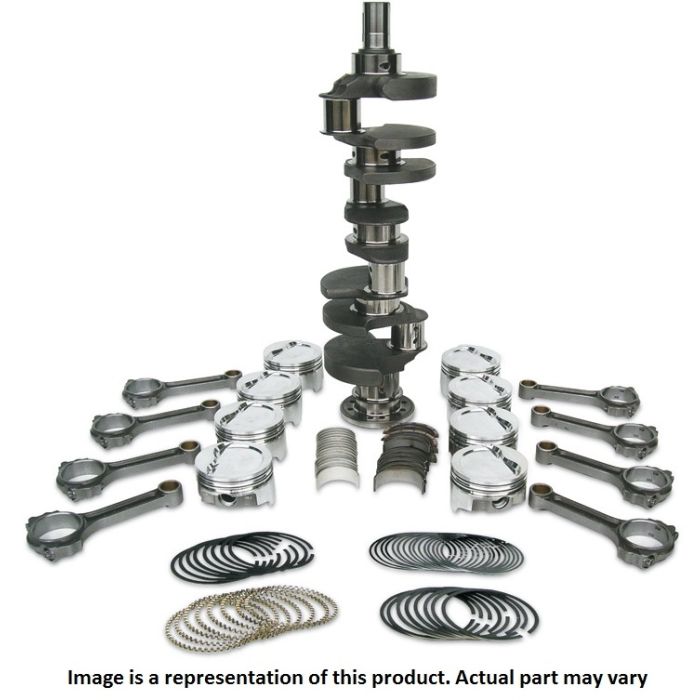

Image is a representation of this item. Actual item may vary.
Part Number:
CNC-305RS

Scat SB Chevy 305 Race Saver Rotating Assembly - 9.5:1 Mahle Flat Top Pistons

4340 Forged Standard Weight Crankshaft 3.480 Stroke, 350 Main, 5.700 Lightweight H-Beam Rods, Mahle Forged -1.6cc Flat Top Pistons, 2-PC Rear Seal

Special Price $2,705.95 Regular Price $2,780.95
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
  • 4340 Forged Standard Weight Crankshaft
  • 4340 Q Lite H-Beam Connecting Rods with ARP bolts
  • Mahle Forged Pistons
  • Rod Bearings and Main Bearings
  • Premium Ring Set
  • Rotating assembly is unbalanced (Internal balancing is required)

    Compression Ratio:
  • 58cc 10.3:1
  • 64cc 9.5:1
  • More Information
    CNC Part Number CNC-305RS
    Price $2,780.95
    Manufacturer's Part Number 305RS
    Brands Mahle, Scat
    Part Types Engine Rotating Assembly Kit
    Departments Parts
    Vehicle Make SB Chevy
    Balanced Assembly No
    Balance Type Internal
    Crankshaft Material 4340 Forged Steel
    Crankshaft Stroke 3.480
    Piston Brand Mahle
    Piston Type Flat Top
    Rod Length 5.700
    Rear Main Seal 2 Piece
    Piston Material 4032 Forged
    Custom Notices ⚠ PROP 65 WARNING
