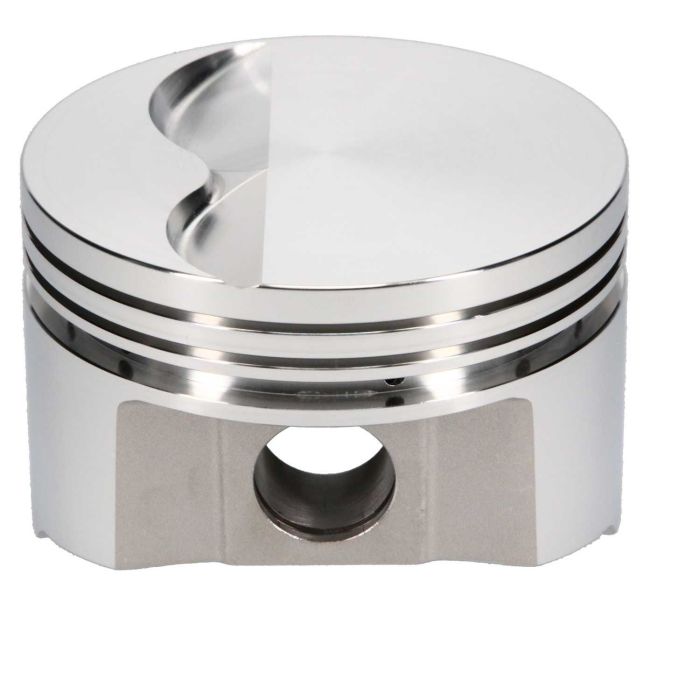

Image is a representation of this item. Actual item may vary.
Part Number:
SRP-138732

SRP Pistons 138732 Forged Windsor 351W Flat Top 4.060 Bore

SRP Pistons, SBF 362, Bore 4.060, Stroke 3.500, Rod Length 5.956, Flat Top -5.0cc, 552 Grams, Set of 8

Special Price $591.29 Regular Price $656.99
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
SRP Professional pistons are the most advanced lightweight FSR forging that offers superior strength. SRP pistons are up to 20% lighter than traditional equivalent pistons. High-silicon 4032 aluminum alloy for reduced piston-to-wall clearance and quiet operation. Accumulator grooves for improved ring seal. Designed for normally aspirated or moderate forced induction nitrous engine applications. SRP professional pistons come standard with high-performance skirt coating and low drag performance piston rings.

  • Fits Ford, TFS, GT40, Canfield, Brodix, Track I, OE & Dart Windsor.
  • Does not fit Twisted Wedge, N351 or Edelbrock 7721.
  • CNC machined ring grooves accept 1/16, 1/16, 3/16 rings (Sold separately)
  • Includes wrist pin

    Compression Ratio:
  • 58cc 11.3:1
  • 64cc 10.5:1
  • 70cc 9.8:1
  • More Information
    CNC Part Number SRP-138732
    Price $656.99
    Manufacturer's Part Number 138732
    Brands SRP
    Part Types Engine Piston
    Departments Parts
    Vehicle Make Ford SB
    Bore Size 4.060
    Crankshaft Stroke 3.500
    Rod Length 5.956
    Piston Type Flat Top
    Compression Height 1.774
    Piston Material 4032 Forged
    Piston Ring Size 1/16 1/16 3/16
    Wrist Pin Size 0.912
    Custom Notices ⚠ PROP 65 WARNING
