Image is a representation of this item. Actual item may vary.
Part Number:
SRP-147753

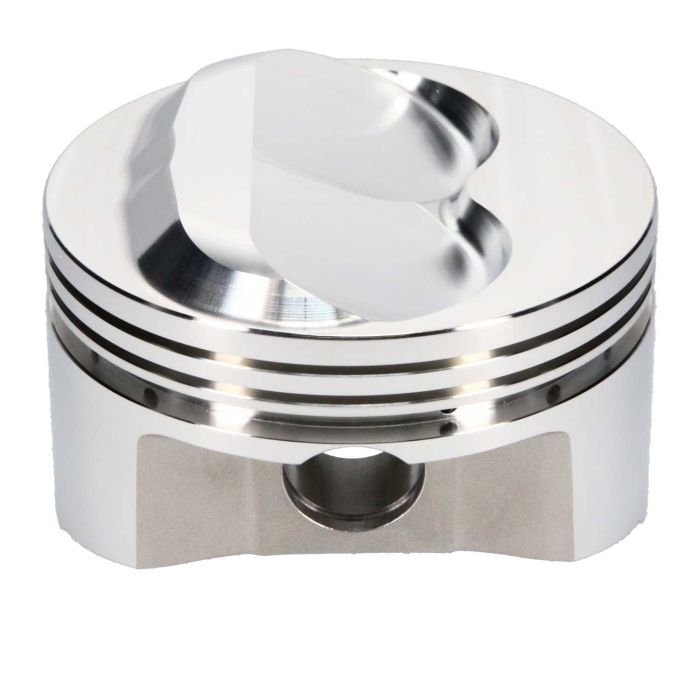

SRP Pistons 147753 Forged 302/ 327 Dome 4.040 Bore

SRP Pistons, SBC 333, Bore 4.040, Stroke 3.250, Rod Length 5.700, Dome +12cc, 540 Grams, Set of 8

Special Price $661.49 Regular Price $734.99
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
SRP Professional pistons are the most advanced lightweight FSR forging that offers superior strength. SRP pistons are up to 20% lighter than traditional equivalent pistons. High-silicon 2618 aluminum alloy for reduced piston-to-wall clearance and quiet operation. Accumulator grooves for improved ring seal. Designed for normally aspirated or moderate forced induction nitrous engine applications. SRP professional pistons come standard with high-performance skirt coating and low drag performance piston rings.

  • Designed for use with the most popular 23° heads
  • Optional bearing steel wrist pins available
  • 927-2750-150 wall wrist pin (130 grams) included
  • CNC Machined ring grooves accept 1/16, 1/16, 3/16mm rings (Rings Sold Separately)

    Compression Ratio:
  • 58cc 13.4:1
  • 64cc 12.2:1
  • 70cc 11.2:1
  • More Information
    CNC Part Number SRP-147753
    Price $734.99
    Manufacturer's Part Number 147753
    Brands SRP
    Part Types Engine Piston
    Departments Parts
    Vehicle Make Chevy SB
    Bore Size 4.040
    Crankshaft Stroke 3.250
    Rod Length 5.700
    Piston Type Dome
    Compression Height 1.675
    Piston Material 2618 Forged
    Piston Ring Size 1/16 1/16 3/16
    Wrist Pin Size 0.927
    Custom Notices ⚠ PROP 65 WARNING
