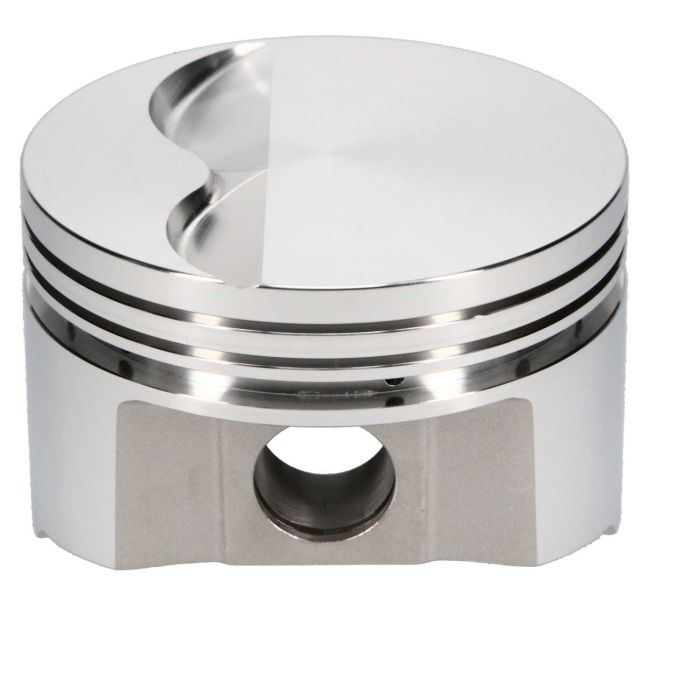

SRP Pistons 206059 Forged Windsor 351W Stroker Combo Flat Top 4.030 Bore

SRP Pistons, SBF 393, Bore 4.030, Stroke 3.850, Rod Length 6.250, Flat Top -5.0cc, 458 Grams, Set of 8 SRP Pistons, SBF 395, Bore 4.030, Stroke 3.875, Rod Length 6.250, Flat Top -5.0cc, 458 Grams, Set of 8 SRP Pistons, SBF 408, Bore 4.030, Stroke 4.000, Rod Length 6.200, Flat Top -5.0cc, 458 Grams, Set of 8 SRP Pistons, SBF 418, Bore 4.030, Stroke 4.100, Rod Length 6.125, Flat Top -5.0cc, 458 Grams, Set of 8

$656.99

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Description

SRP Professional pistons are the most advanced lightweight FSR forging that offers superior strength. SRP pistons are up to 20% lighter than traditional equivalent pistons. High-silicon 4032 aluminum alloy for reduced piston-to-wall clearance and quiet operation. Accumulator grooves for improved ring seal. Designed for normally aspirated or moderate forced induction nitrous engine applications. SRP professional pistons come standard with high-performance skirt coating and low drag performance piston rings.

Fits Ford, TFS, GT40, Canfield, Brodix, Track I, OE & Dart Windsor.

Does not fit Twisted Wedge, N351 or Edelbrock 7721.

CNC machined ring grooves accept 1/16, 1/16, 3/16 rings (Sold separately)

Includes wrist pin

Compression Ratio:

58cc 12.2:1/ 12.3:1/ 12.6:1/ 12.9:1

64cc 11.3:1/ 11.4:1/ 11.7:1/ 12.0:1

70cc 10.6:1/ 10.6:1/ 11.0:1/ 11.2:1

Specifications

More Information
CNC Part Number	SRP-206059
Price	$656.99
Manufacturer's Part Number	206059
Brands	SRP
Part Types	Engine Piston
Departments	Parts
Vehicle Make	Ford SB
Bore Size	4.030
Crankshaft Stroke	3.850, 3.875, 4.000, 4.100
Rod Length	6.125, 6.200, 6.250
Piston Type	Flat Top
Compression Height	1.300
Piston Material	4032 Forged
Piston Ring Size	1/16 1/16 3/16
Wrist Pin Size	0.927
Custom Notices	⚠ PROP 65 WARNING
