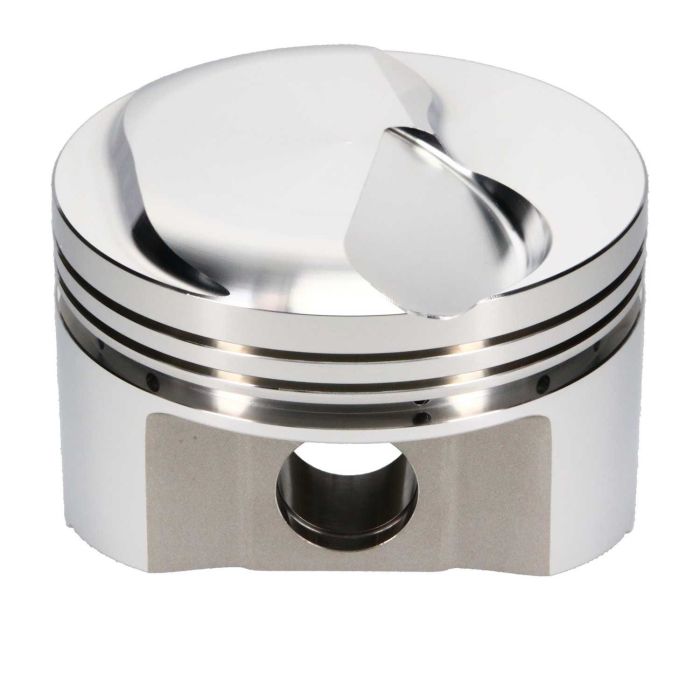

SRP Pistons 212161 Forged Small Dome Profile 4.500 Bore

SRP Pistons, BBC 540, Bore 4.500, Stroke 4.250, Rod Length 6.385, Dome +10cc, 601 Grams, Set of 8

$839.99

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Description

SRP Professional pistons are the most advanced lightweight FSR forging that offers superior strength. SRP pistons are up to 20% lighter than traditional equivalent pistons. High-silicon 4032 aluminum alloy for reduced piston-to-wall clearance and quiet operation. Accumulator grooves for improved ring seal. Designed for normally aspirated or moderate forced induction nitrous engine applications. SRP professional pistons come standard with high-performance skirt coating and low drag performance piston rings.

Designed to fit Edelbrock performer & RPM series heads (110 & 112cc) as well as most open chamber GM, Dart, and Brodix Heads.

CNC machined domes with radiused valve reliefs provide optimum flame travel

Pin fitting and double spiro locks (#990-042-CS) included

990-2930-15-51S wrist pins (150 grams) included.

CNC Machined ring grooves accept 1/16, 1/16, 3/16mm rings (Rings Sold Separately)

Compression Ratio:

112cc 10.9:1

118cc 10.4:1

124cc 9.9:1
Note: *Oil rail supports included.*

Specifications

More Information
CNC Part Number	SRP-212161
Price	$839.99
Manufacturer's Part Number	212161
Brands	SRP
Part Types	Engine Piston
Departments	Parts
Vehicle Make	Chevy BB
Bore Size	4.500
Crankshaft Stroke	4.250
Rod Length	6.385
Piston Type	Dome
Compression Height	1.270
Piston Material	4032 Forged
Piston Ring Size	1/16 1/16 3/16
Wrist Pin Size	0.990
