Image is a representation of this item. Actual item may vary.
Part Number:
SRP-261499

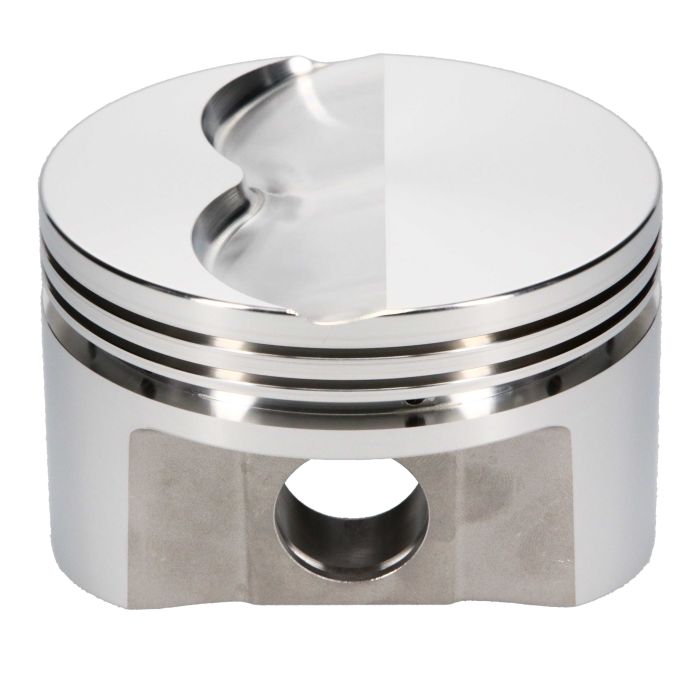

SRP Pistons 261499 Forged 390/ 428 "FE" Flat Top 4.155 Bore

SRP Pistons, Ford FE 432, Bore 4.155, Stroke 3.980, Rod Length 6.490, Flat Top -5.0cc, 544 Grams, Set of 8

Special Price $614.69 Regular Price $682.99
View Similar Items
⚠ PROP 65 WARNING
⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.
Our race-proven SRP design is now available for the Big Block "FE" series. Available for both stock stroke and stroker applications. Bore sizes for the 428 block are set at .025" over to allow the use of popular file-fit rings. These pistons offer thick .250" top ring lands for use with limited nitrous or boost while still offering substantial weight savings. Wrist pin diameter is .975" for part numbers designed for 6.490" OEM rods and .990" for part numbers designed for aftermarket 6.700" rods.

  • Pin#: 975-2750-16-51S or 990-2750-15-51S
  • CNC machined ring grooves accept 1/16, 1/16, 3/16 rings (Sold separately)
  • Double Spiro Locks (#990-042-CS)

    Compression Ratio:
  • 68cc 11.7:1
  • 72cc 11.2:1
  • 76cc 10.8:1
    Note: *Made to order.*
  • More Information
    CNC Part Number SRP-261499
    Price $682.99
    Manufacturer's Part Number 261499
    Brands SRP
    Part Types Engine Piston
    Departments Parts
    Vehicle Make Ford FE
    Bore Size 4.155
    Crankshaft Stroke 3.980
    Rod Length 6.490
    Piston Type Flat Top
    Compression Height 1.670
    Piston Material 4032 Forged
    Piston Ring Size 1/16 1/16 3/16
    Wrist Pin Size 0.975
    Custom Notices ⚠ PROP 65 WARNING
