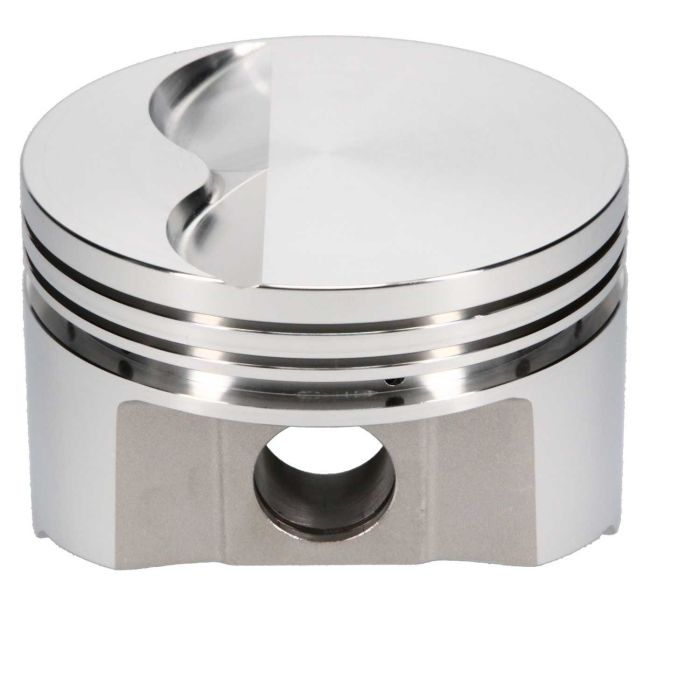

SRP Pistons 329733 Forged Windsor 351W Stroker Combo Flat Top 4.060 Bore

SRP Pistons, SBF 388, Bore 4.060, Stroke 3.750, Rod Length 6.250, Flat Top -5.0cc, 480 Grams, Set of 8 SRP Pistons, SBF 394, Bore 4.060, Stroke 3.800, Rod Length 6.250, Flat Top -5.0cc, 480 Grams, Set of 8 SRP Pistons, SBF 398, Bore 4.060, Stroke 3.850, Rod Length 6.200, Flat Top -5.0cc, 480 Grams, Set of 8 SRP Pistons, SBF 401, Bore 4.060, Stroke 3.875, Rod Length 6.200, Flat Top -5.0cc, 480 Grams, Set of 8 SRP Pistons, SBF 414, Bore 4.060, Stroke 4.000, Rod Length 6.125, Flat Top -5.0cc, 480 Grams, Set of 8

$668.99

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Image is a representation of this item. Actual item may vary.

Description

SRP Professional pistons are the most advanced lightweight FSR forging that offers superior strength. SRP pistons are up to 20% lighter than traditional equivalent pistons. High-silicon 4032 aluminum alloy for reduced piston-to-wall clearance and quiet operation. Accumulator grooves for improved ring seal. Designed for normally aspirated or moderate forced induction nitrous engine applications. SRP professional pistons come standard with high-performance skirt coating and low drag performance piston rings.

Fits Ford, TFS, GT40, Canfield, Brodix, Track I, OE & Dart Windsor.

Does not fit Twisted Wedge, N351 or Edelbrock 7721.

CNC machined ring grooves accept 1/16, 1/16, 3/16 rings (Sold separately)

Includes wrist pin

Compression Ratio:

58cc 11.2:1/ 12.1:1/ 12.3:1/ 12.4:1/ 12.8:1

64cc 10.5:1/ 11.3:1/ 11.5:1/ 11.5:1/ 11.9:1

70cc 9.9:1/ 10.6:1/ 10.7:1/ 10.8:1/ 11.1:1
Note: *Made to order.*

Specifications

More Information
CNC Part Number	SRP-329733
Price	$668.99
Sold As	Set
Manufacturer's Part Number	329733
Brands	SRP
Part Types	Engine Piston
Departments	Parts
Vehicle Make	Ford SB
Bore Size	4.060
Crankshaft Stroke	3.750, 3.800, 3.850 , 3.875, 4.000
Rod Length	6.125, 6.200, 6.250
Piston Type	Flat Top
Compression Height	1.350
Piston Material	4032 Forged
Piston Ring Size	1/16 1/16 3/16
Wrist Pin Size	0.927
Custom Notices	⚠ PROP 65 WARNING
