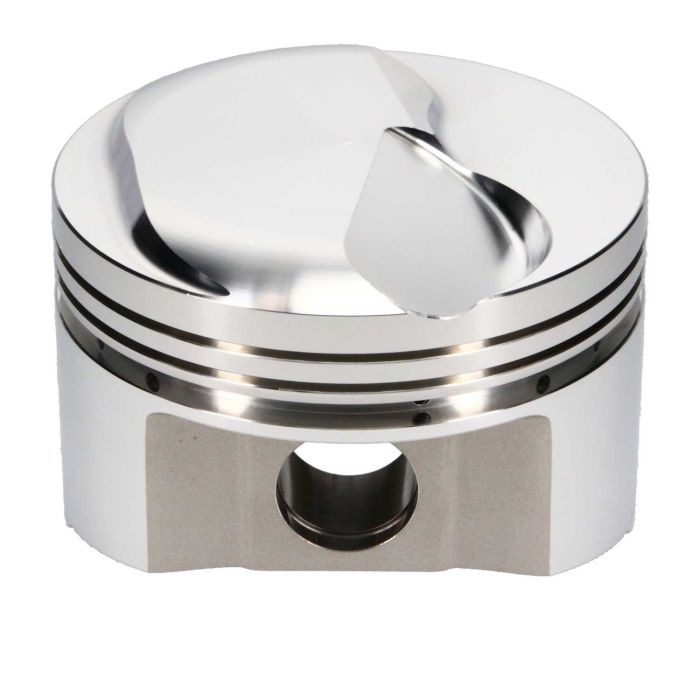

SRP Pistons 338179 Forged Small Dome Profile 4.560 Bore

SRP Pistons, BBC 523, Bore 4.560, Stroke 4.000, Rod Length 6.385, Dome +17cc, 667 Grams, Set of 8

Special Price $722.69 Regular Price $802.99

View Similar Items

⚠ PROP 65 WARNING

⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. Please contact us to obtain a list of harmful chemicals. For more information, go to www.P65Warnings.ca.gov.

Description

SRP Professional pistons are the most advanced lightweight FSR forging that offers superior strength. SRP pistons are up to 20% lighter than traditional equivalent pistons. High-silicon 4032 aluminum alloy for reduced piston-to-wall clearance and quiet operation. Accumulator grooves for improved ring seal. Designed for normally aspirated or moderate forced induction nitrous engine applications. SRP professional pistons come standard with high-performance skirt coating and low drag performance piston rings.

Designed to fit Edelbrock performer & RPM series heads (110 & 112cc) as well as most open chamber GM, Dart, and Brodix Heads.

CNC machined domes with radiused valve reliefs provide optimum flame travel

Pin fitting and double spiro locks (#990-042-CS) included

990-2930-15-51S wrist pins (150 grams) included.

CNC Machined ring grooves accept 1/16, 1/16, 3/16mm rings (Rings Sold Separately)

Compression Ratio:

112cc 11.2:1

118cc 10.5:1

124cc 10.0:1
Note: *Made to order.*

Specifications

More Information
CNC Part Number	SRP-338179
Price	$802.99
Manufacturer's Part Number	338179
Brands	SRP
Part Types	Engine Piston
Departments	Parts
Vehicle Make	Chevy BB
Bore Size	4.560
Crankshaft Stroke	4.000
Rod Length	6.385
Piston Type	Dome
Compression Height	1.395
Piston Material	4032 Forged
Piston Ring Size	1/16 1/16 3/16
Wrist Pin Size	0.990
